Defroster Grille - Installation





INSTALLATION

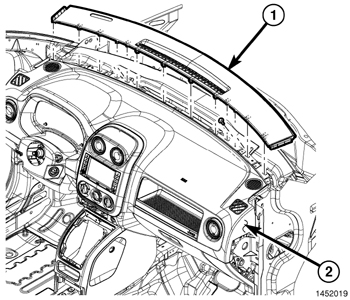

1. Place the defroster grille into position on the instrument panel (IP).
2. Firmly seat the defroster grille, engaging the clip retainers to the IP.
3. Install both A-pillar trim panels to the vehicle and seat firmly to engage the retainers.
4. Connect the battery negative cable.
