INSTALLATION

1. Clean MAP sensor mounting hole at intake manifold.

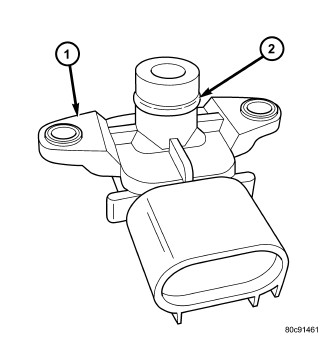

2. Check MAP sensor o-ring seal (2) for cuts or tears.

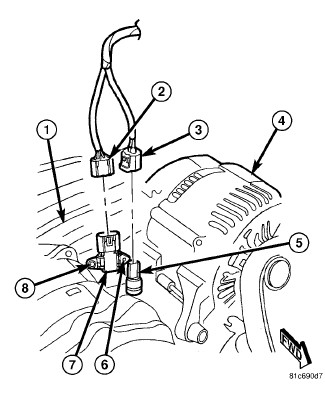

3. Position MAP sensor into manifold by sliding sensor over locating pin (6).
4. Install mounting bolt (8). Tighten to 3 Nm (25 in. lbs.) torque.
5. Connect electrical connector (2).
