Transmission Control Module - Installation

3.6L GAS/3.0L DIESEL VEHICLES

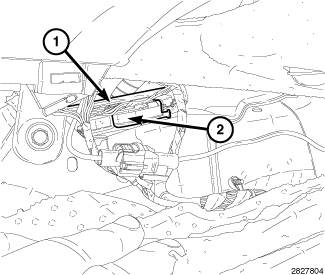

1. Connect the wiring connectors (2) to the transmission control module (1).
2. Slide the TCM (1) into the mounting bracket.

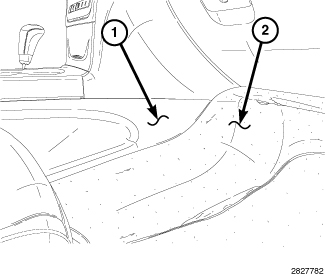

3. Fold the right side floor carpet (2) back under the center dash area.
4. Install the right side lower center console trim panel (1).
