Removal

3.6L





1. Disconnect and isolate the negative battery cable.
2. Remove the engine cover (1).





3. Unlock and disconnect the electrical connector (1) from the MAP sensor.

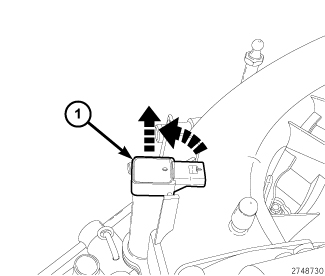

4. Rotate the MAP sensor 1/4 turn counterclockwise and pull the sensor straight up and out of the upper intake manifold.





5. The MAP sensor O-ring (1) can be reused if not damaged.
