INSULATOR, Engine Mount, Front: Installation: Installation

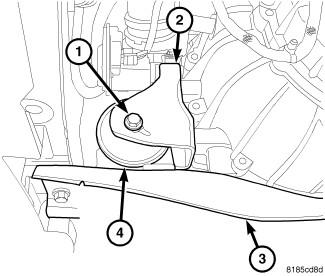

Fig 1: Front Mount Through Bolt
GC0084853Courtesy of CHRYSLER LLC
  1. Position mount (4) and tighten bolts to 47 N.m (35 ft. lbs.).
  2. Install fore aft member (3) and tighten bolts to 100 N.m (74 ft. lbs.).
  3. Install mount through bolt (1) and tighten to 47 N.m (35 ft. lbs.).
  4. Lower vehicle.
