Removal






REMOVAL





1. Disconnect negative battery cable.
2. Remove air tube.

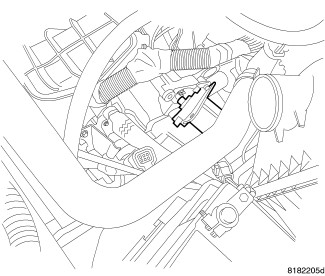

3. Disconnect electrical connector (2).
4. Remove mounting bolts (1).

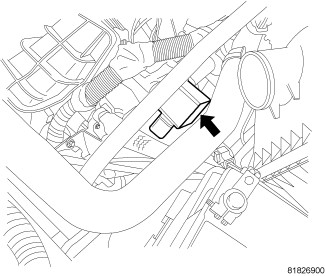

5. Remove valve.
