No Crank Condition: Notes

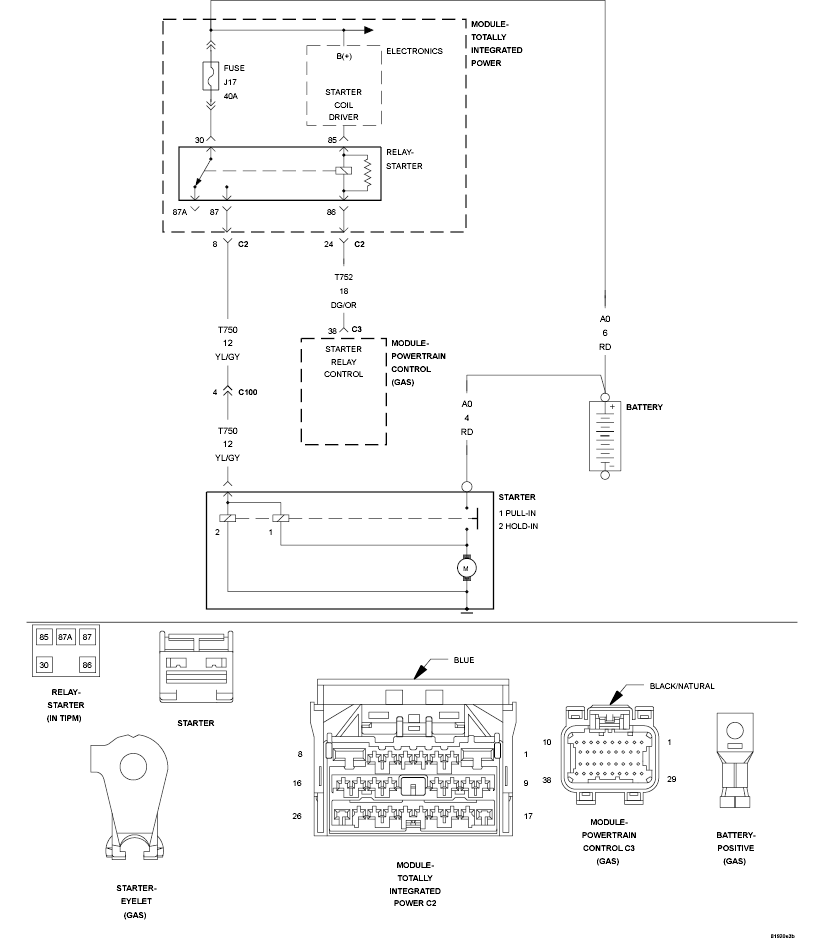

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article(s).
| Possible Causes |
|---|
| MECHANICAL CONDITION |
| FUSED B+ CIRCUITS OPEN |
| BATTERY CIRCUIT RESISTANCE TOO HIGH |
| (T752) STARTER RELAY CONTROL CIRCUIT SHORTED TO GROUND |
| (T752) STARTER RELAY CONTROL CIRCUIT OPEN |
| (T750) STARTER RELAY OUTPUT CIRCUIT SHORTED TO GROUND |
| (T750) STARTER RELAY OUTPUT CIRCUIT OPEN |
| REMOTE START ANTENNA (IF EQUIPPED) |
| TRANSMISSION RANGE SENSOR |
| TOTALLY INTEGRATED POWER MODULE (TIPM) |
| POWERTRAIN CONTROL MODULE (PCM) |
| STARTER |
