Intrusion Transceiver Module (ITM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
DTC U1008: Lin 1 Bus
>>
Circuit Schematic
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Schematic

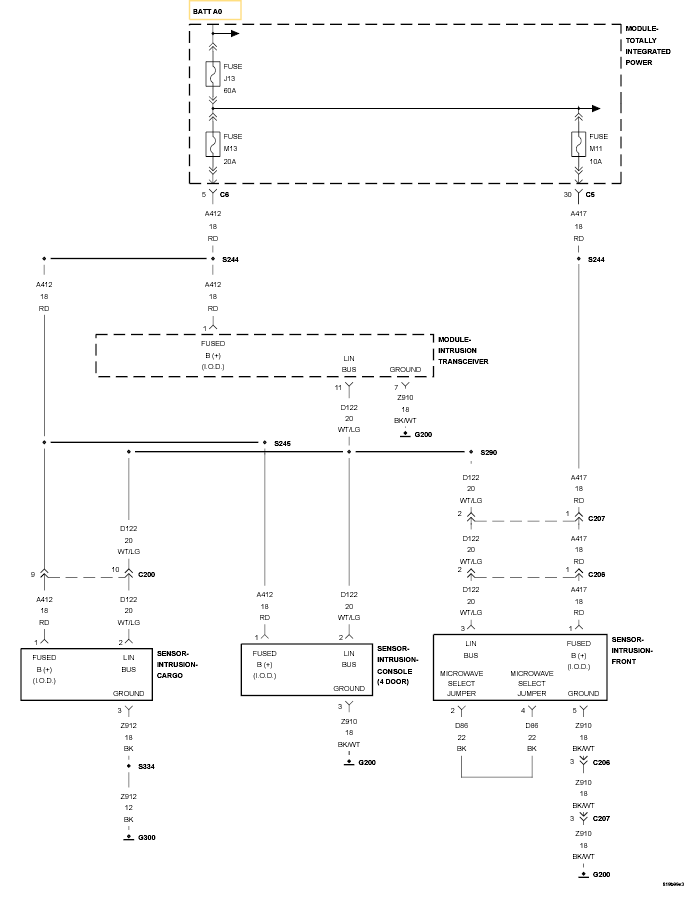

Fig 1: Intrusion Sensors Circuit Schematic
Courtesy of CHRYSLER LLC
