Special Tools
Fig 1: Adapter, Pressure Test - 8259
Courtesy of CHRYSLER LLC
Fig 2: Transmission Simulator - 8333A
Courtesy of CHRYSLER LLC
Fig 3: Adapter, Leak Check - 8382
Courtesy of CHRYSLER LLC
Fig 4: Adapter, Leak Check - 8399
Courtesy of CHRYSLER LLC
Fig 5: EELD Machine - 8404A
Courtesy of CHRYSLER LLC
Fig 6: Adapter, Service Port - 8404-14
Courtesy of CHRYSLER LLC
Fig 7: Adaptor, EELD - 8404-ADP
Courtesy of CHRYSLER LLC
Fig 8: Light - 8404-CLL
Courtesy of CHRYSLER LLC
Fig 9: Exhaust Cone - 8404-EC
Courtesy of CHRYSLER LLC
Fig 10: Exhaust Cone - 8404-ECT
Courtesy of CHRYSLER LLC
Fig 11: Ultraviolet (UV) Black Light - 8404-UVL
Courtesy of CHRYSLER LLC
Fig 12: Loadtool Kit, SRS - 8443A
Courtesy of CHRYSLER LLC
Fig 13: Jumpers, 2 Pin - 8443-1
Courtesy of CHRYSLER LLC
Fig 14: Adaptor, 64-Way - 8443-32
Courtesy of CHRYSLER LLC

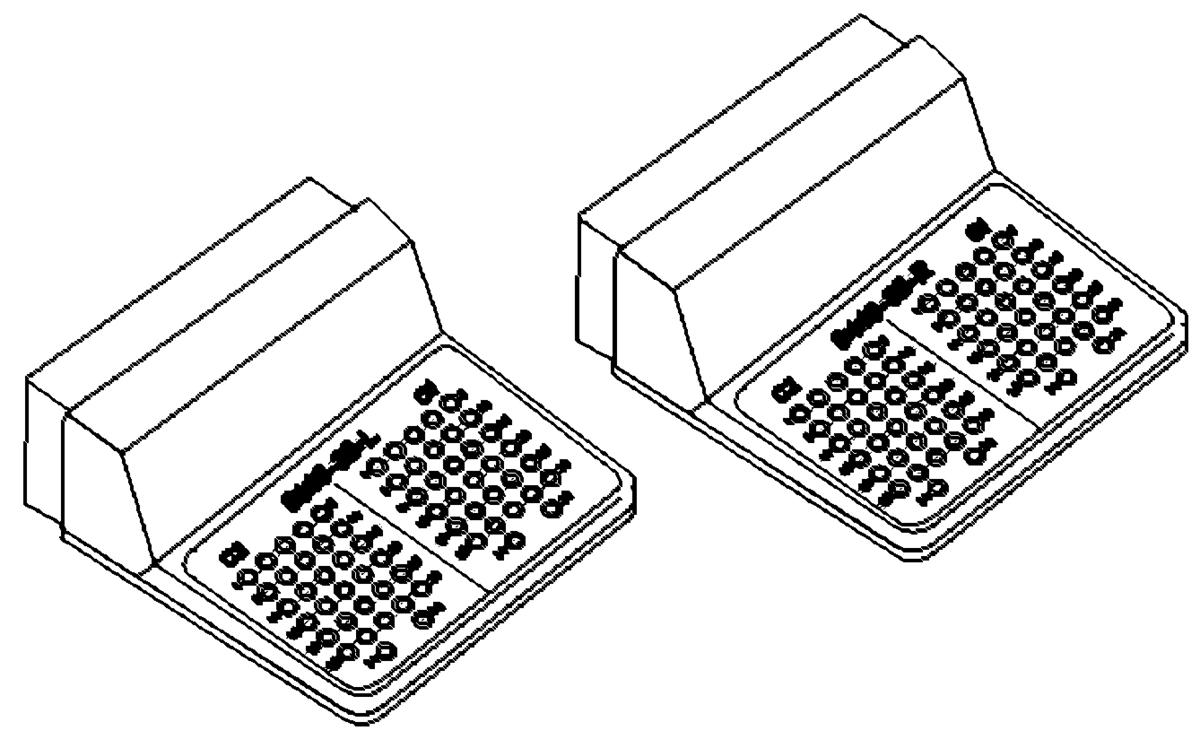

Fig 15: Adaptor, 64-Way - 8443-32-L
Courtesy of CHRYSLER LLC
Fig 16: Pinout Box, PCM Diagnostic - 8815
Courtesy of CHRYSLER LLC
Fig 17: PCM Pinout Box Adapter - 8815-1
Courtesy of CHRYSLER LLC
Fig 18: Tester, Fuel Decay - 8978
Courtesy of CHRYSLER LLC
Fig 19: Gauge & Hose - C-3293-SP
Courtesy of CHRYSLER LLC
