Totally Integrated Power Module

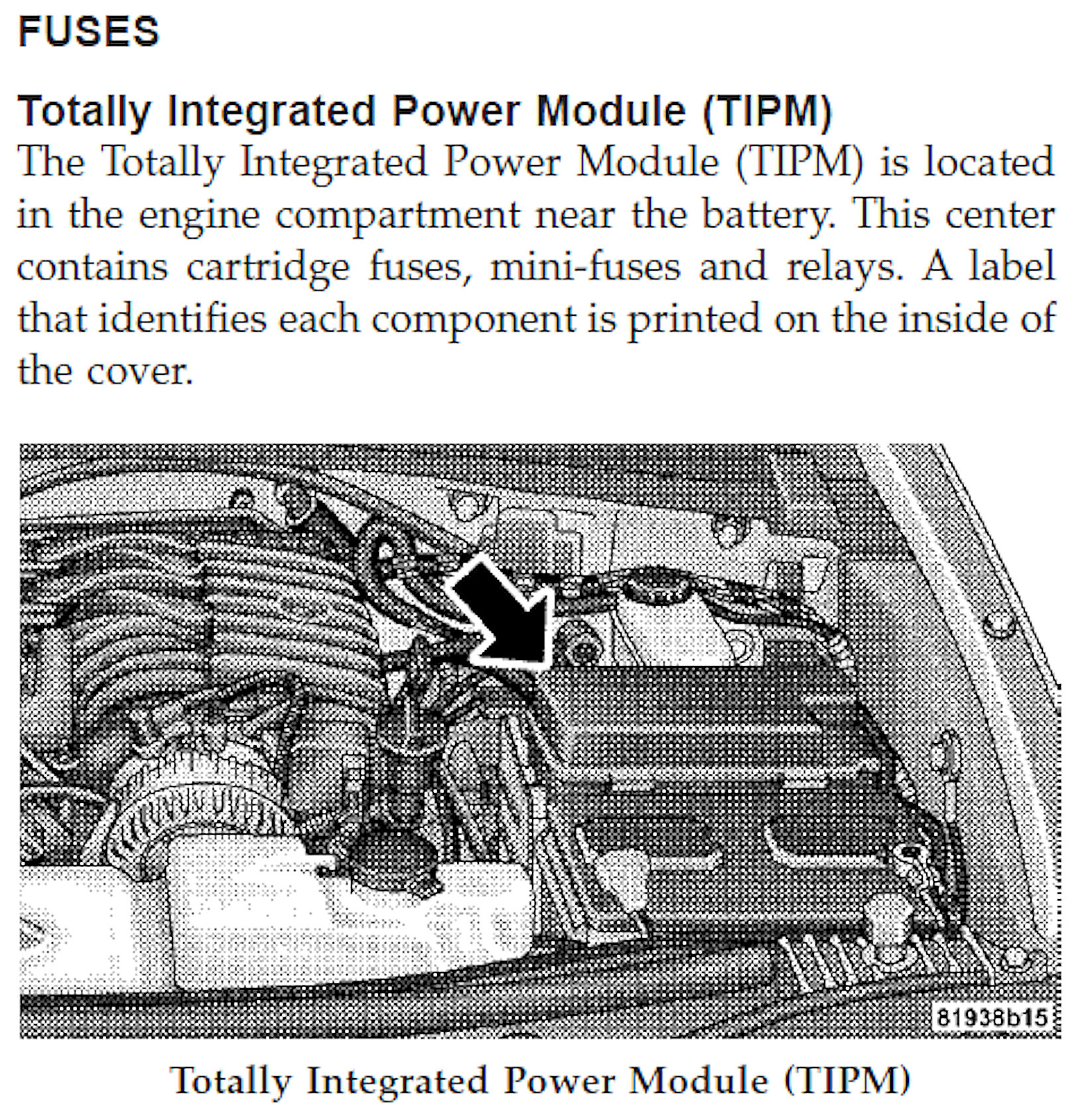

Location:

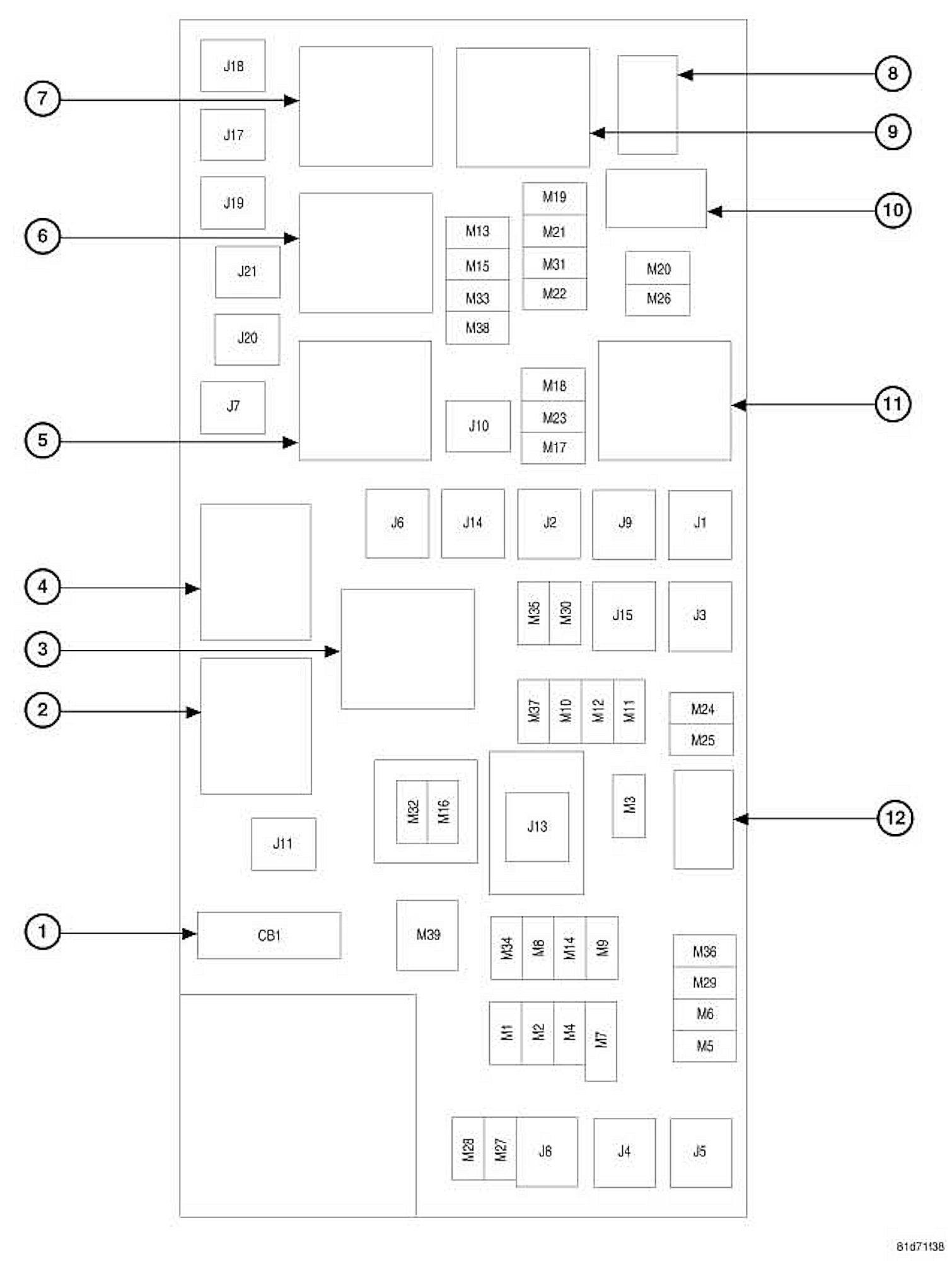

Totally Integrated Power Module:

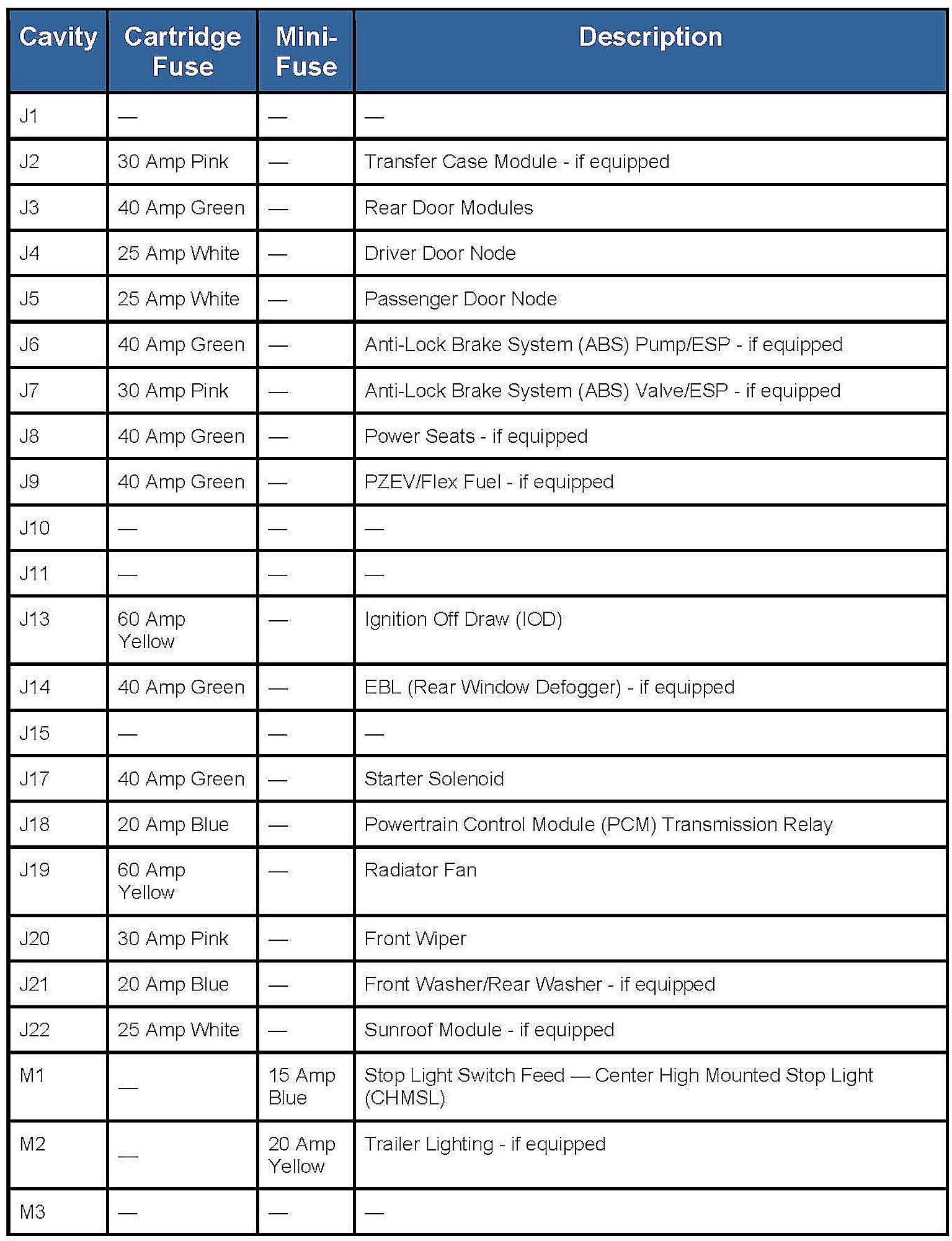

Fuse J1- M3:

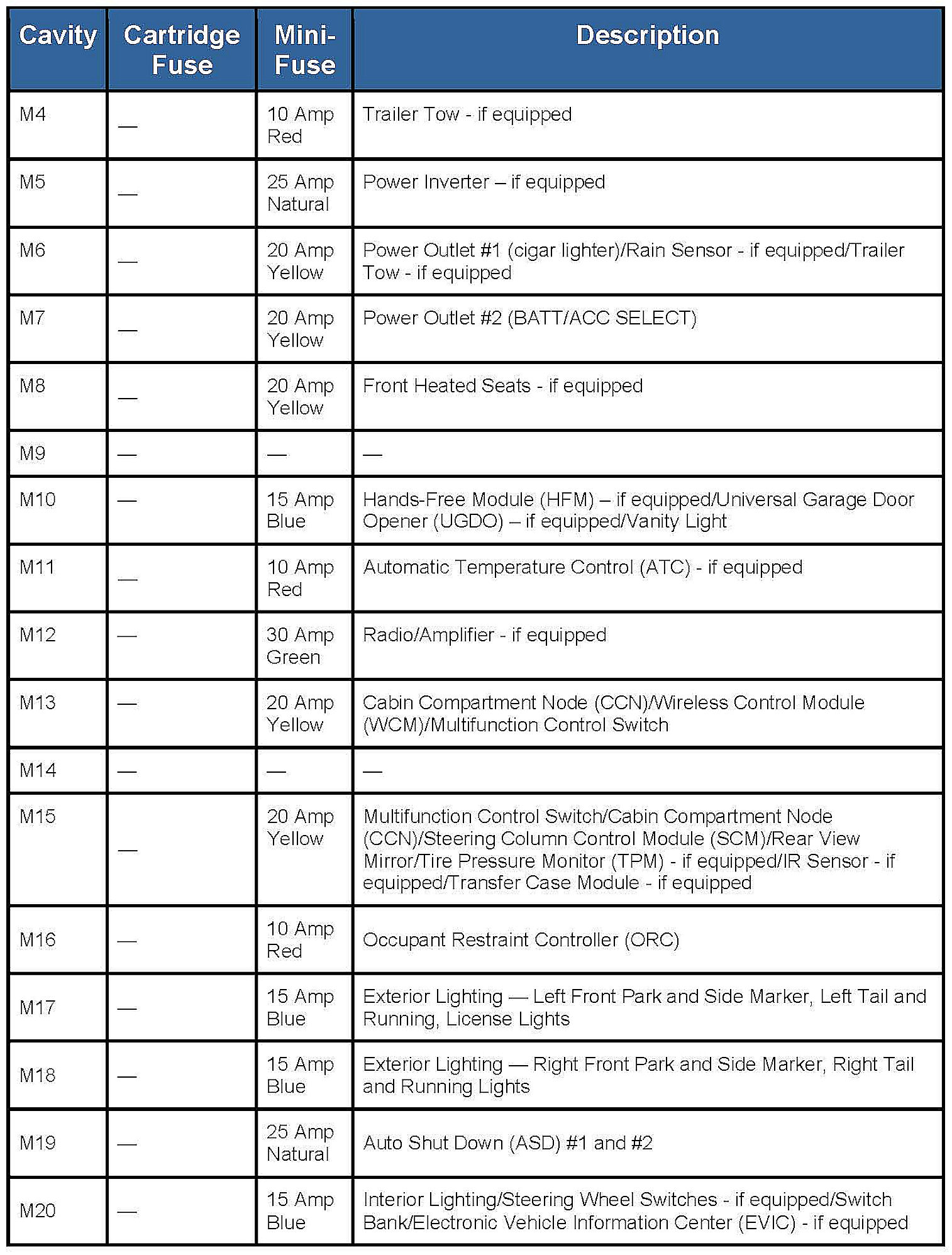

Fuse M4 - M20:

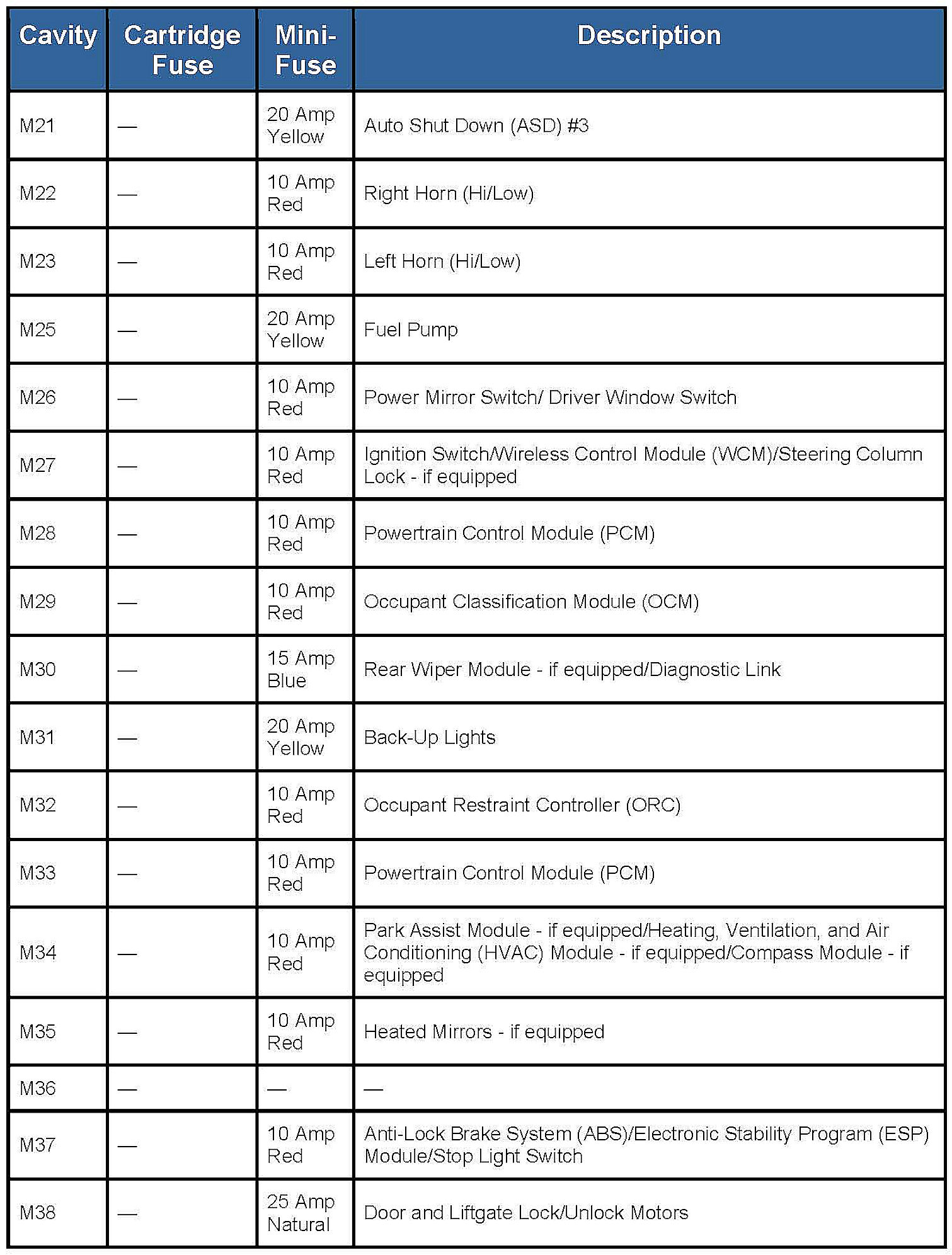

Fuse M21 - M38:

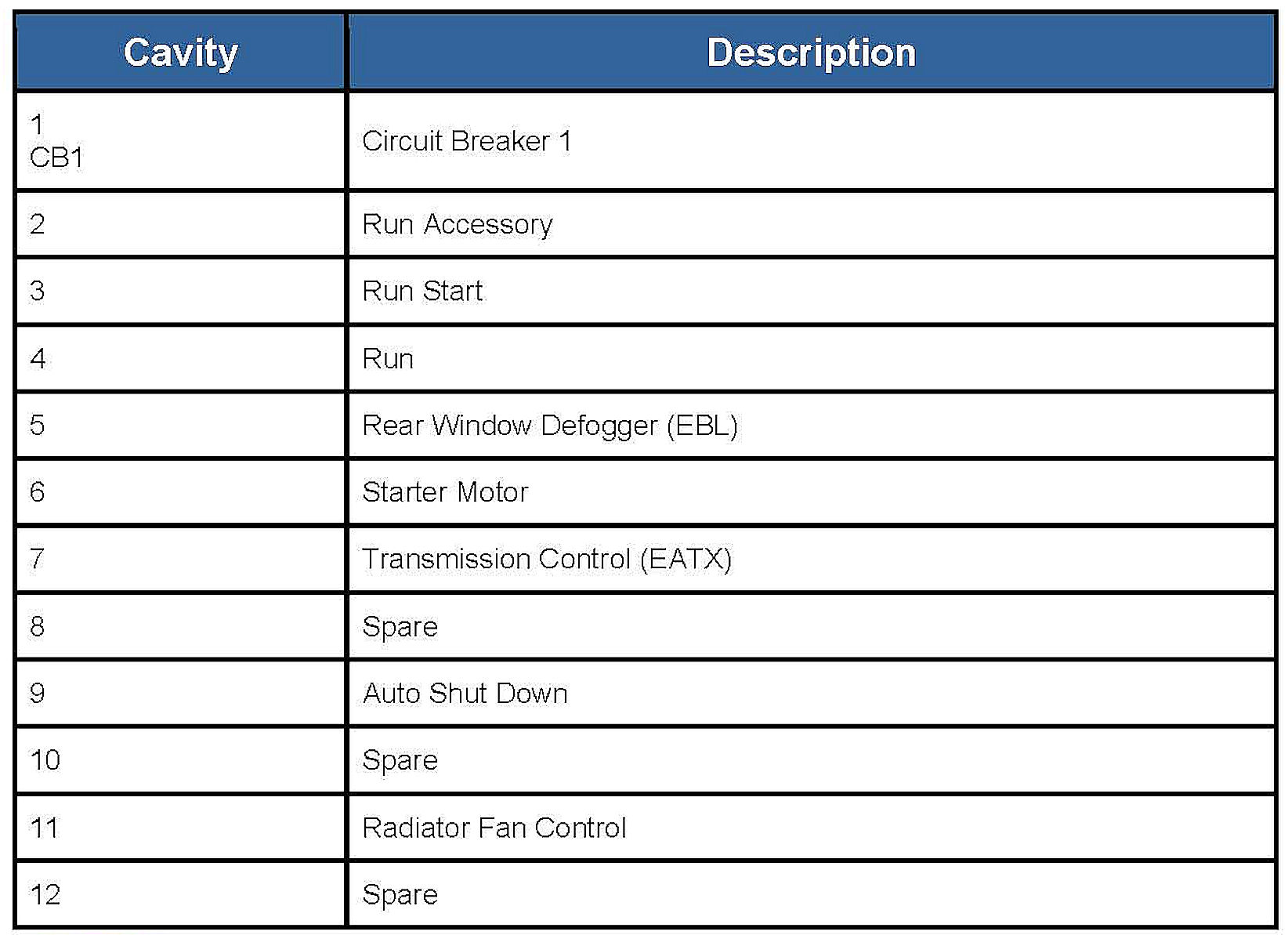

Relays 1 - 12:
