TIPM Component Layout And Connector Identification

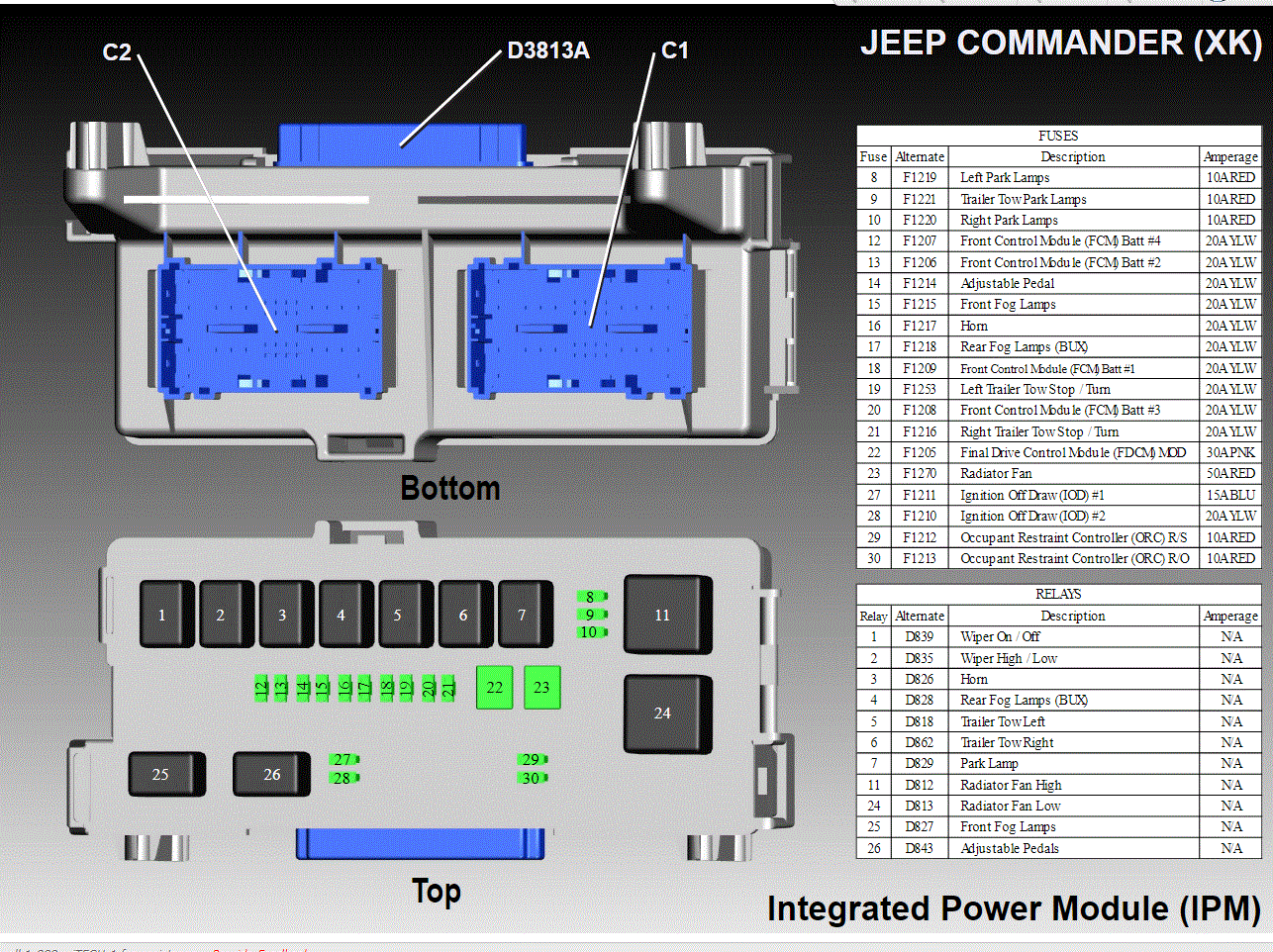

Fig 1: TIPM Layout And Connector Identification
Courtesy of CHRYSLER
