Wireless Ignition Module (Win) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B1A68-Steering Column Lock Module Bolt Control Low
>>
Circuit Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Schematic

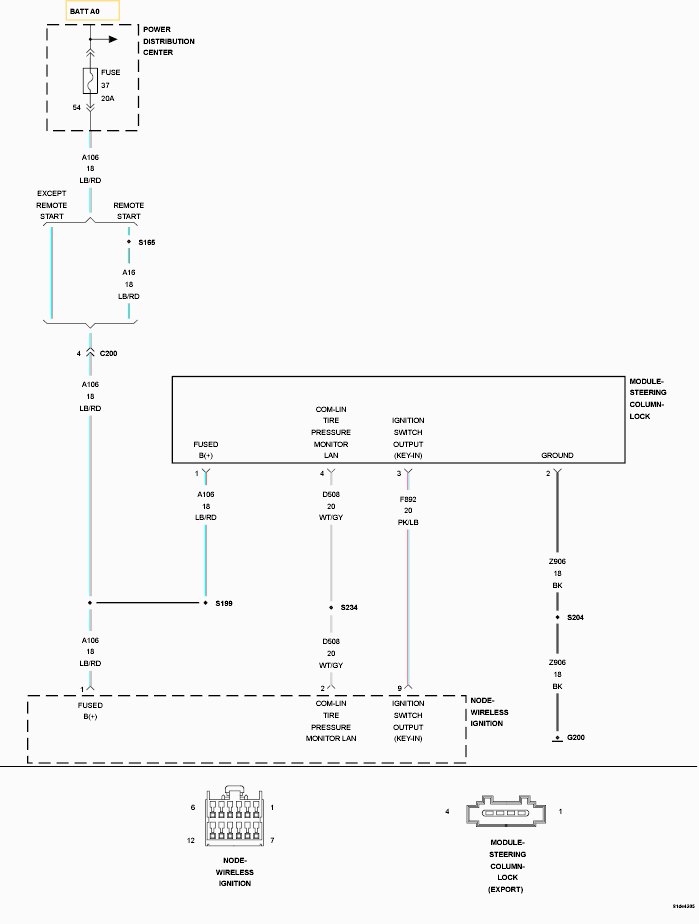

Fig 1: Steering Column Lock Module Circuit Schematic
Courtesy of CHRYSLER LLC
