3.7L Engine

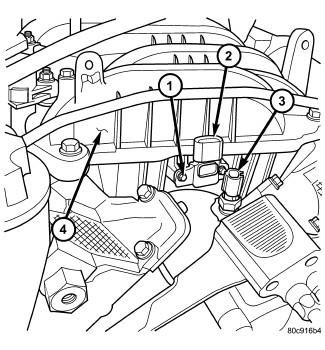

Fig 1: MAP SENSOR / ECT SENSOR - 3.7L

GC0118291

Courtesy of CHRYSLER LLC

1 - MOUNTING SCREWS

2 - MAP SENSOR

3 - ECT SENSOR

4 - FRONT OF INTAKE MANIFOLD

Apply MOPAR™ thread sealant with PFTE part number 04318034 to sensor threads.
Install sensor (3) to engine.
Tighten sensor (3) to 11 N.m (8 ft. lbs.) torque.
Connect electrical connector to sensor (3).
Replace any lost engine coolant. See Cooling - Standard Procedure .
