2010
>>
Commander Limited, 4WD
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Air Bag Restraint System - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B212C-Ignition Run/Start Input Circuit Open
>>
Circuit Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Schematic

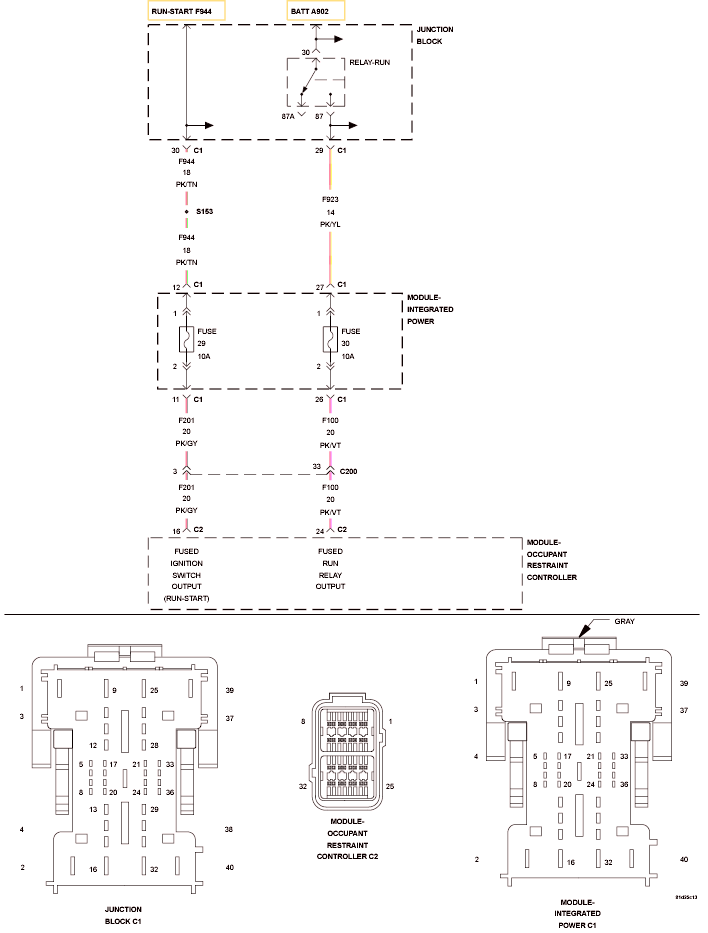

Fig 1: Occupant Restraint Controller (ORC) Power Supply Schematic
