DTCS P0441 To P0573 - NGC
>>
P0480-Cooling Fan 1 Control Circuit
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
P0480-Cooling Fan 1 Control Circuit: Notes

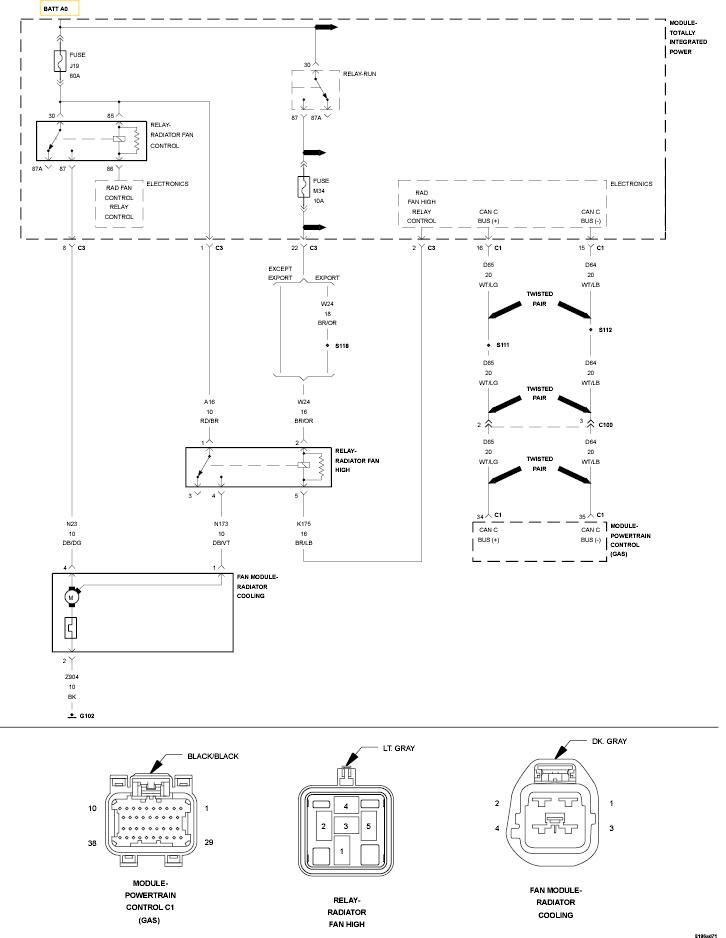

Fig 1: Cooling Fan Control Circuit
Courtesy of CHRYSLER LLC
