VALVE, Exhaust Gas Recirculation, 3.7L: Installation: Installation

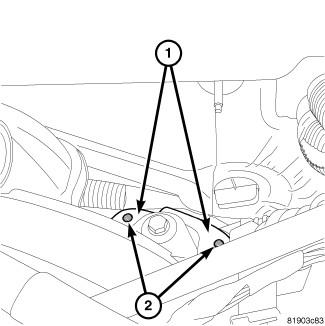

Fig 1: LOCATING VALVE SOLENOID GASKET

Courtesy of CHRYSLER LLC

Clean gasket area (1) at rear of left cylinder head where it joins base of EGR valve.
Clean EGR tube where it joins EGR valve.
Position new gasket between EGR valve and cylinder head.

Fig 2: LOCATING VALVE SOLENOID
Courtesy of CHRYSLER LLC
Position EGR valve to cylinder head. Install and tighten two bolts (2). Tighten to 9 N.m (80 in. lbs.).

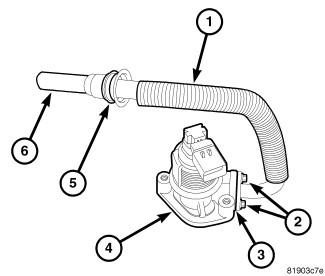

Fig 3: EGR SOLENOID/TUBE ASSEMBLY
Courtesy of CHRYSLER LLC
Position new gasket (3) between EGR tube flange and EGR valve assembly.
Position EGR tube (1) to side of EGR valve. Position end of tube (6) into intake manifold. Install two bolts (2). Tighten to 11 N.m (97 in. lbs.).

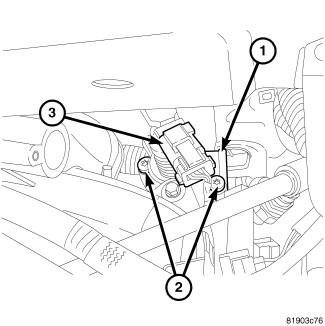

Fig 4: LOCATING VALVE SOLENOID
Courtesy of CHRYSLER LLC
Connect electrical connector (3) to top of EGR valve solenoid (1).
Connect negative battery cable.
Using a diagnostic scan tool, erase any previously recorded DTC's (Diagnostic Trouble Codes).
