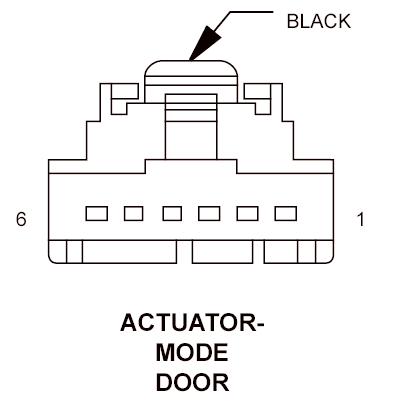

Mode Door Actuator Connector End View
ACTUATOR-MODE DOOR - BLACK 6 WAY FEMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
C35 20LB/OR |
MODE DOOR DRIVER (LHD) |
| 5 |
C154 20LB/OR |
COMMON DOOR DRIVER (RHD) |
| 6 |
C154 20LB/OR |
COMMON DOOR DRIVER (LHD) |
| 6 |
C35 20LB/OR |
MODE DOOR DRIVER (RHD) |
