Ignition Control Switch






DESCRIPTION

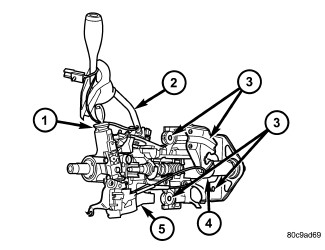

The ignition switch (5) is located on the steering column (4). It is used as the main on/off switching device for most electrical components. The mechanical key cylinder is used to engage/disengage the electrical ignition switch.
