Glow Plug 1 (Diesel) Connector End View

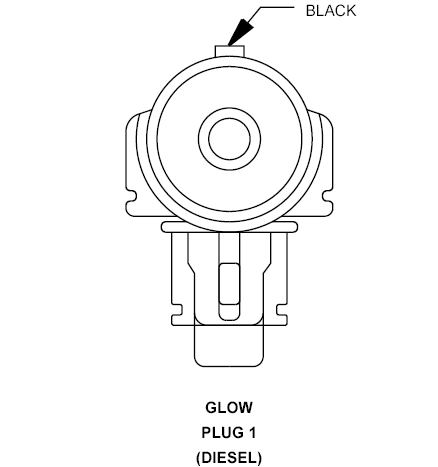

GLOW PLUG 1 - BLACK 1 WAY (DIESEL)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A202 16BK/RD
GLOW PLUG 1 CONTROL
