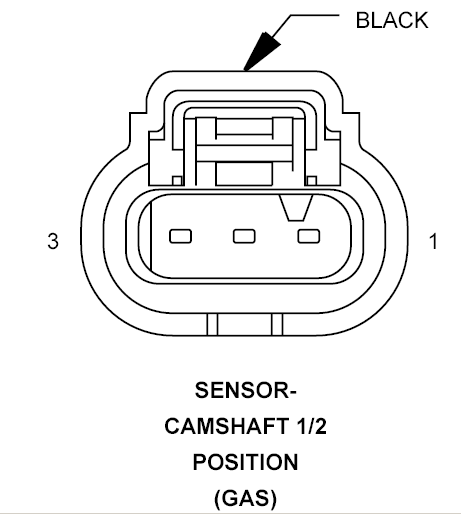

Camshaft Position Sensor 1/2 (Gas) Connector End View
SENSOR-CAMSHAFT 1/2 POSITION - BLACK 3 WAY (GAS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F855 20PK/YL |
5 VOLT SUPPLY |
| 2 |
K915 20BR/WT |
SENSOR GROUND |
| 3 |
K441 20DB/BR |
CMP 1/2 SIGNAL |
