Spark Plug: Removal: Removal

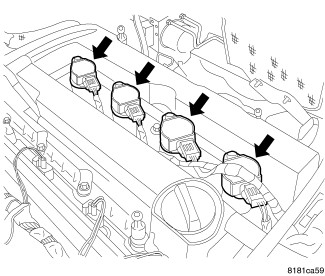

Fig 1: IGNITION COILS
GC0082369Courtesy of CHRYSLER LLC
  1. Disconnect the negative battery cable.
  2. Disconnect the electrical connectors from ignition coils.
    Fig 2: IGNITION COIL BOLT
    GC0082370Courtesy of CHRYSLER LLC
  3. Remove the ignition coil mounting bolt.
    Fig 3: IGNITION COIL REMOVED
    GC0082371Courtesy of CHRYSLER LLC
  4. Twist the ignition coil then pull straight up.
    Fig 4: SPARK PLUG REMOVED
    GC0082372Courtesy of CHRYSLER LLC
  5. Remove the spark plug using a quality socket with a rubber or foam insert.
  6. Inspect the spark plug condition.
