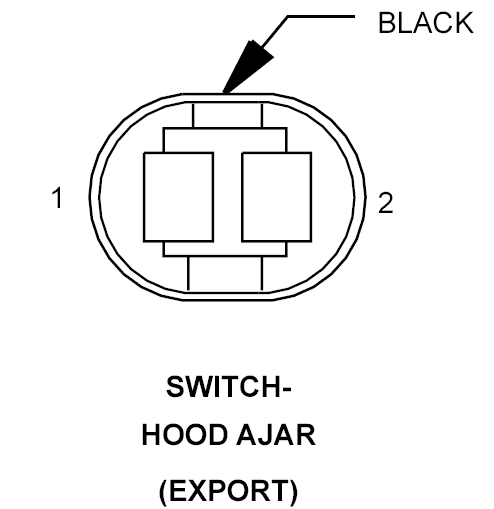

Hood Ajar Switch (Export) Connector End View
SWITCH-HOOD AJAR - BLACK 2 WAY (EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G70 20VT/LB |
HOOD AJAR SWITCH SENSE |
| 2 |
Z908 20BK/PK |
GROUND |
