Fluid - Transfer Case: Service and Repair

DRAIN AND FILL

1. If fluid level is low or fluid change is required fill with MOPAR(R) MS9020 SAE 80W90 Gear Lube until to bottom of fill plug.

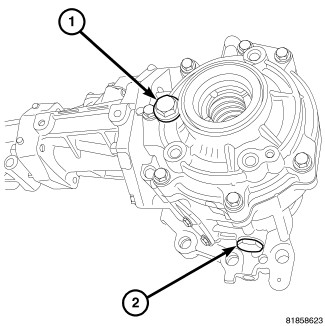

2. Tighten fill plug (1) to 32 Nm (24 ft.lbs.).
3. Tighten drain plug (2) to 32 Nm (24 ft.lbs.).
