Left Rear ABS Wheel Speed Sensor (Body) 2 Way

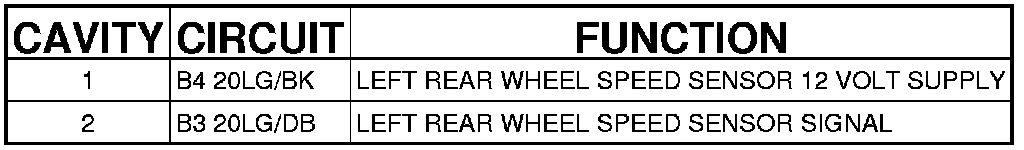

Connector - (BODY) 2 WAY

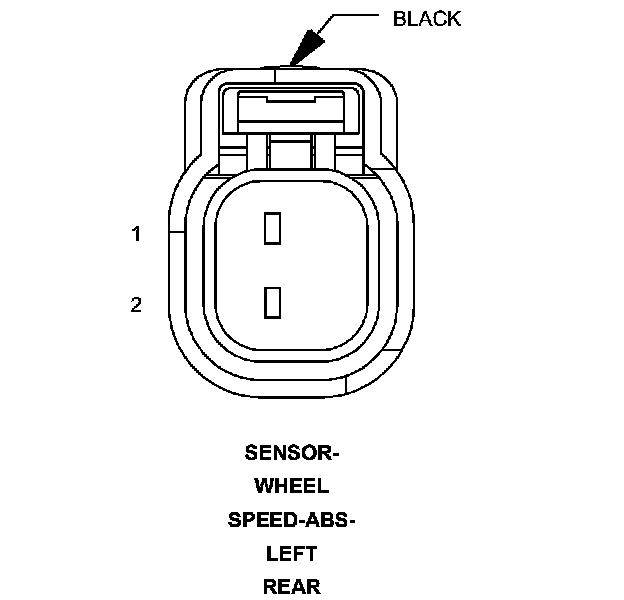

SENSOR-WHEEL SPEED-ABS-LEFT REAR - (BODY) 2 WAY
