U0161-Lost Communication With Compass Module
>>
Circuit Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Schematic

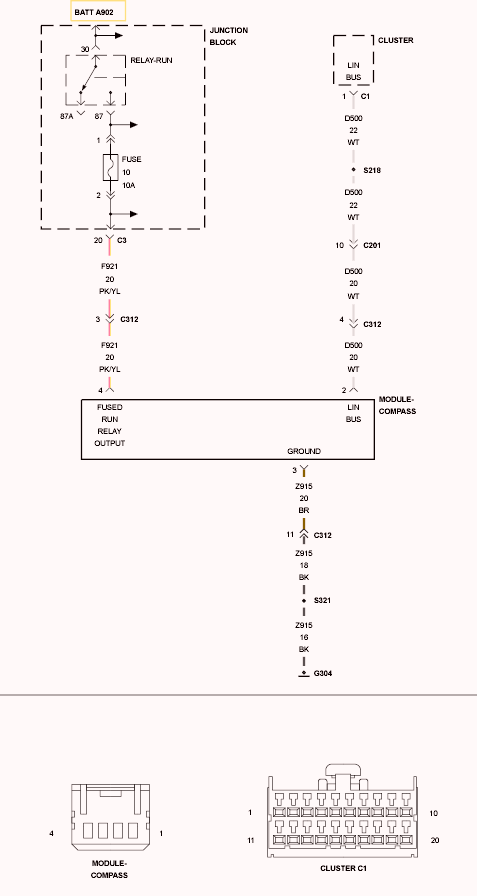

Fig 1: LIN BUS & Fused Run Relay Output Circuit Schematic
Courtesy of CHRYSLER LLC
