SENSOR, Air Temperature, Intake: Installation: 4.7L
Fig 1: IAT Sensor Tab/O-Ring
Courtesy of CHRYSLER LLC
1 - IAT SENSOR
2 - SENSOR O-RING
3 - RELEASE TAB
Check condition of sensor o-ring (2).
Clean sensor mounting hole.
Position sensor (1) into base and rotate clockwise until past release tab (3).

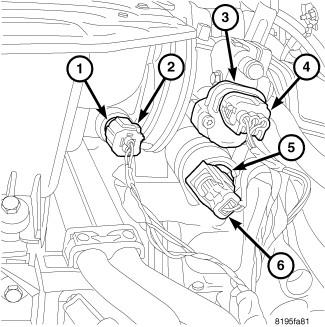

Fig 2: IAT Sensor - 4.7L
Courtesy of CHRYSLER LLC
Install electrical connector (2).
