Circuit Schematic

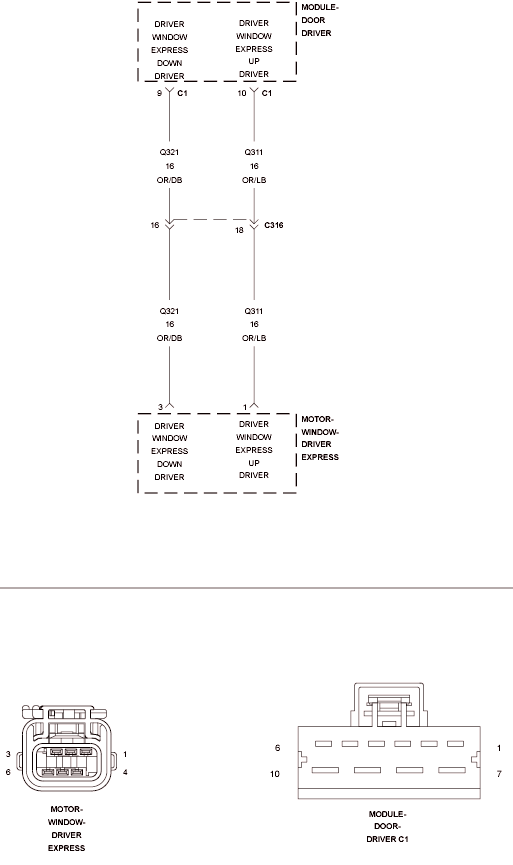

Fig 1: Driver Window Express Up/Down Driver Circuit Schematic

Courtesy of CHRYSLER LLC
