B1D75-Seat Rear Vertical Position Sensor Circuit Low: Notes

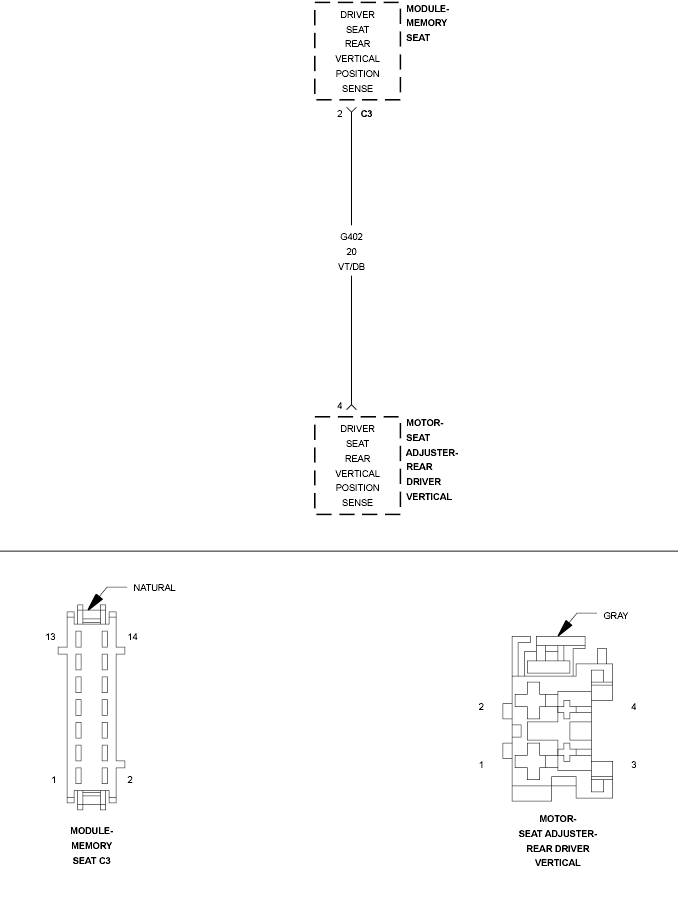

Fig 1: Driver Seat Rear Vertical Position Sense Circuit Schematic
GC0097024Courtesy of CHRYSLER LLC
