Engine Block: FLEXPLATE: Removal: Removal

WARNING: This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

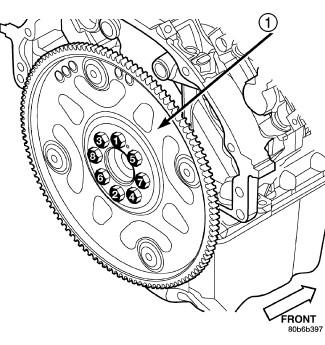

Fig 1: Flexplate Tightening Sequence
GC0104497Courtesy of CHRYSLER LLC
1 - FLEXPLATE
  1. Remove the transmission. Refer to Transmission and Transfer Case/Automatic - NAG1 - Removal or Transmission and Transfer Case/Automatic - 45RFE/545RFE - Removal .
  2. Remove the bolts using the sequence provided.
  3. Remove the flexplate.
