Passenger Door Module (PDM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B1D2F-Passenger Mirror Horizontal Motor Control Circuit Low
>>
Circuit Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Schematic

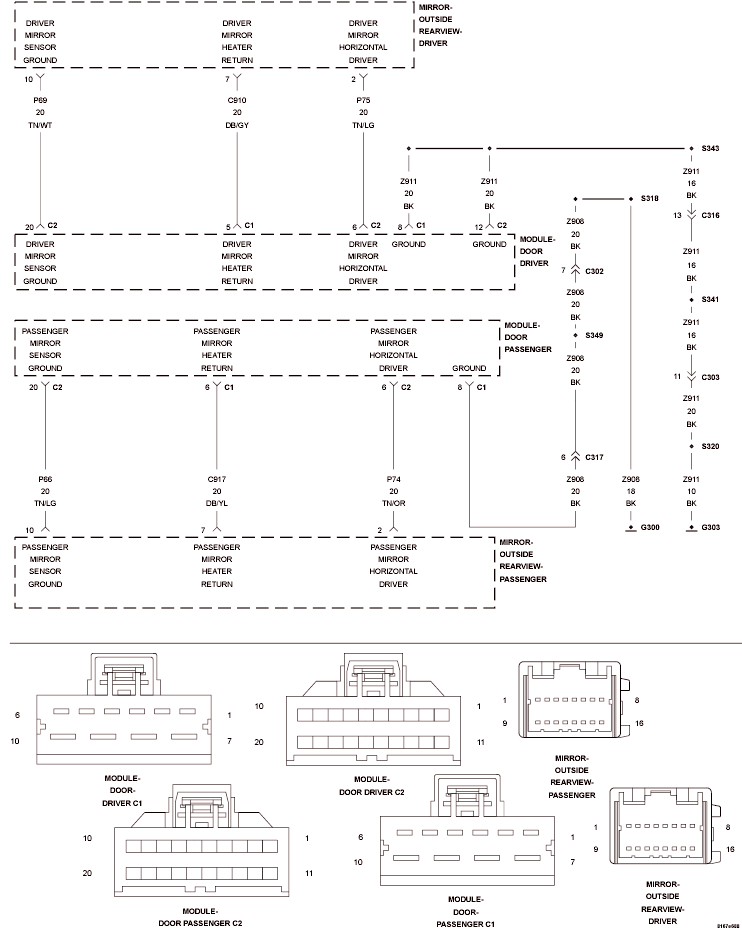

Fig 1: Passenger Mirror Horizontal Driver Circuit Schematic
Courtesy of CHRYSLER LLC
