Installation - Rear

INSTALLATION

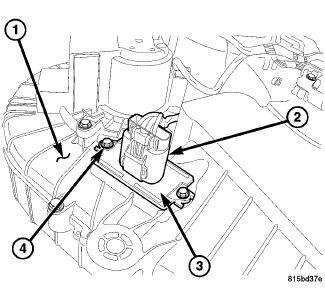

1. Position the rear blower motor resistor (3) into the back of the rear HVAC housing (1).
2. Install the two screws (4) that secure the rear blower motor resistor to the rear HVAC housing. Tighten the screws to 2 Nm (17 in. lbs.).
3. Connect the rear HVAC wire harness connector (2) to the rear blower motor resistor.
4. Install the rear HVAC housing .
