Rear Defogger Relay - Removal

REMOVAL





1. Disconnect and isolate the negative battery cable.

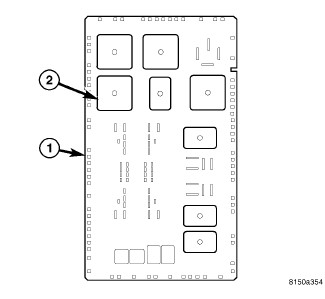

2. Remove the junction block (JB) (1) from underneath the instrument panel Junction Block - Removal.
3. Remove the EBL relay (2) from the top side of the JB.
