Front Ambient Temperature Sensor - Installation






INSTALLATION

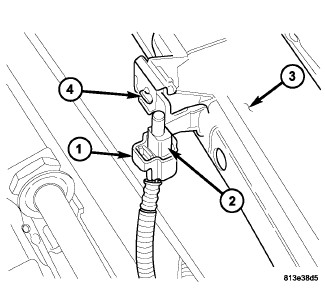

1. Install the ambient air temperature sensor (2) onto the top of the front bumper beam (3). Make sure that the retaining tabs (4) are fully engaged.
2. Connect the wire harness connector (1) to the ambient air temperature sensor.
3. Install the grille Grille - Installation.
4. Reconnect the negative battery cable.
