Heated Glass Element

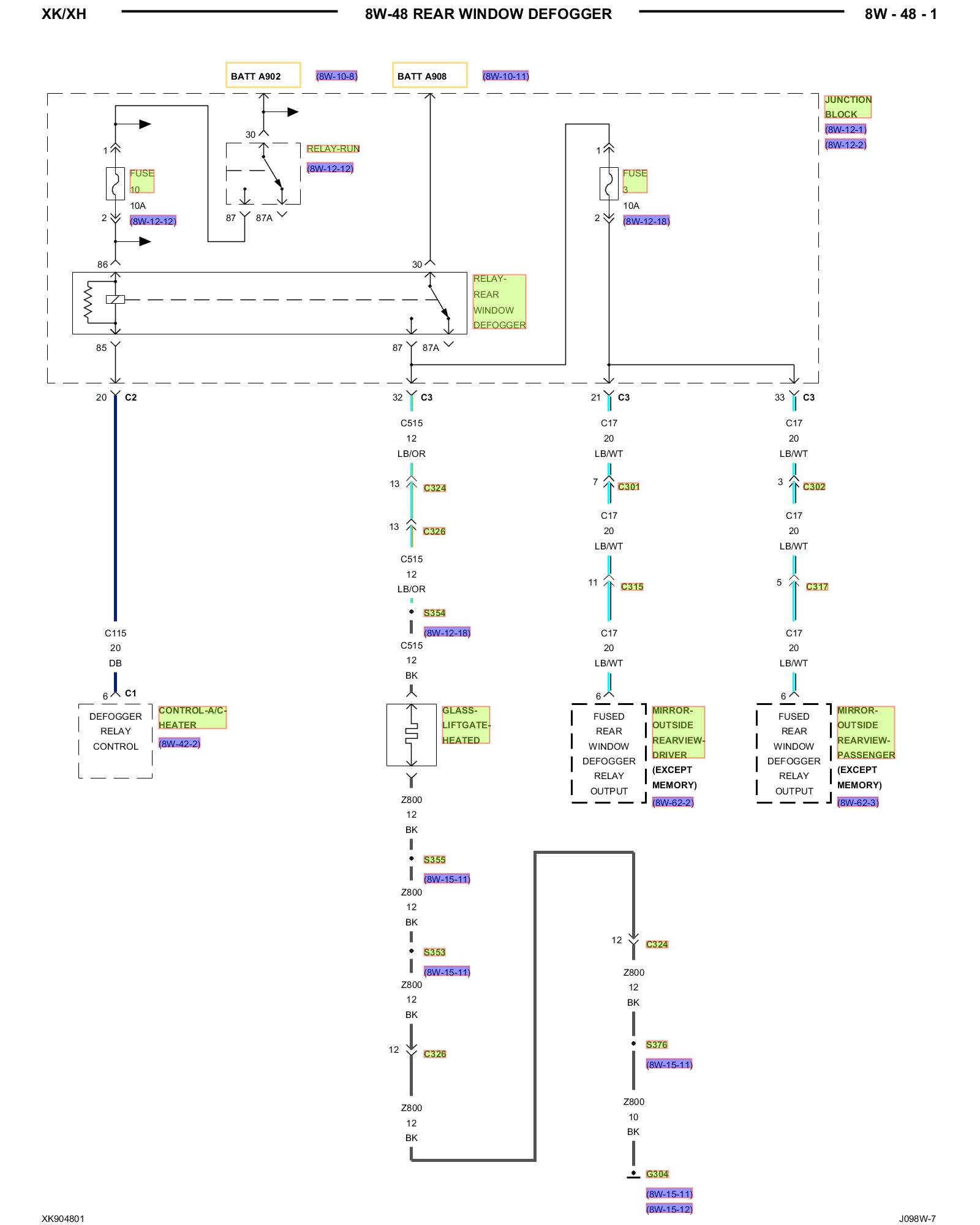

REAR WINDOW DEFOGGER - Diagram






Other Diagrams: Other diagrams referred to by number (i.e. 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams by Number Diagrams By Number
