Coil Spring
Courtesy of CHRYSLER LLC
- Raise and support the vehicle. Position a hydraulic jack under the axle to support it.

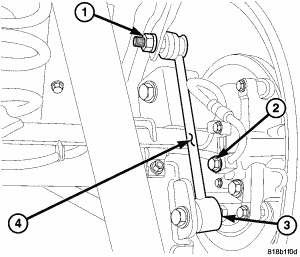

- Disconnect the stabilizer bar links (3) from the axle brackets. See REMOVAL .
Courtesy of CHRYSLER LLC

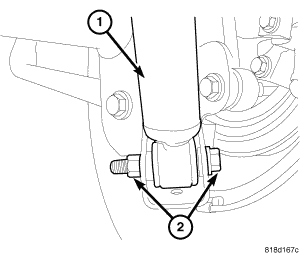

- Disconnect the shock absorbers from the axle brackets (2). See REMOVAL .
Courtesy of CHRYSLER LLC

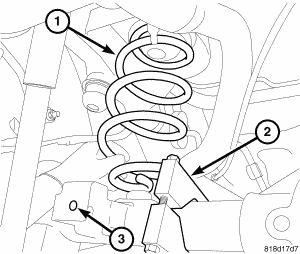

- Disconnect the track bar from the axle bracket (3). See REMOVAL .
- Lower the axle until the spring (1) is free from the upper mount seat and remove the spring (1).
