Sensor-Side Impact-Right 1

Component ID: 306
Component : SENSOR-SIDE IMPACT-RIGHT 1

Connector:
Name : SENSOR-SIDE IMPACT-RIGHT 1
Color : YELLOW
# of pins : 2
Qualifier : (SIDE AIRBAGS)




Pin Circuit Description
1 R16 20BR/LG RIGHT SIDE IMPACT SENSOR 1 GROUND
2 R14 20TN/LG RIGHT SIDE IMPACT SENSOR 1 SIGNAL

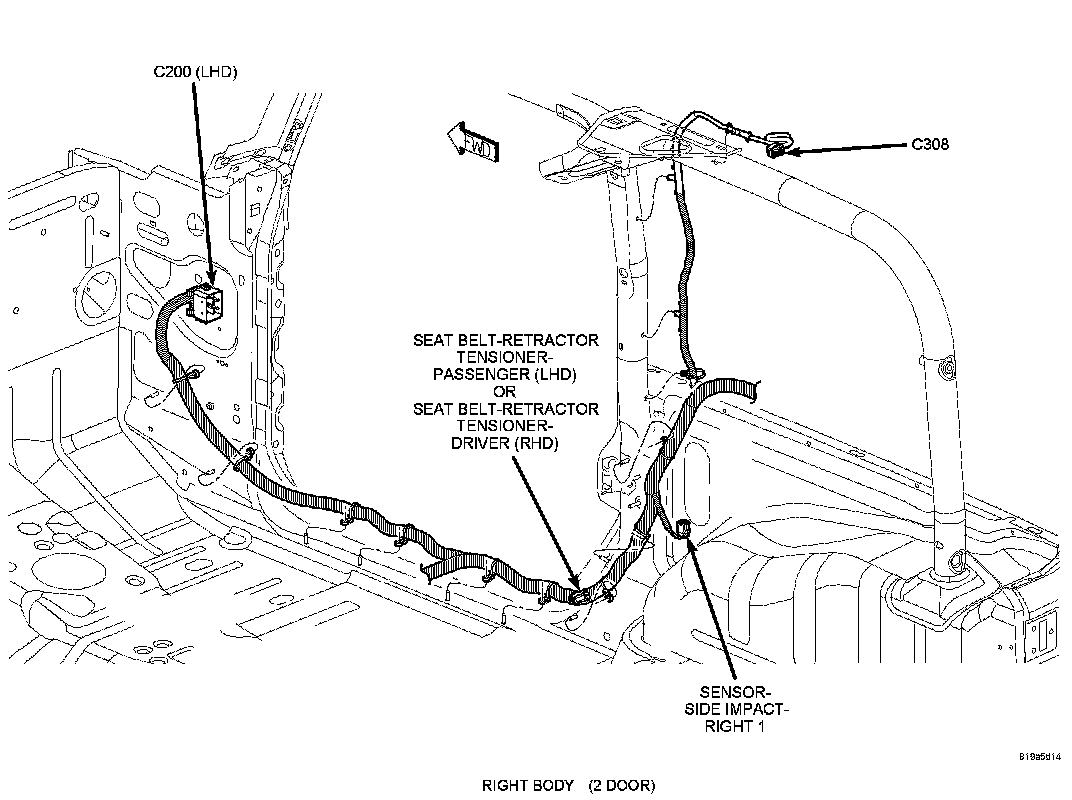

Component Location - 21

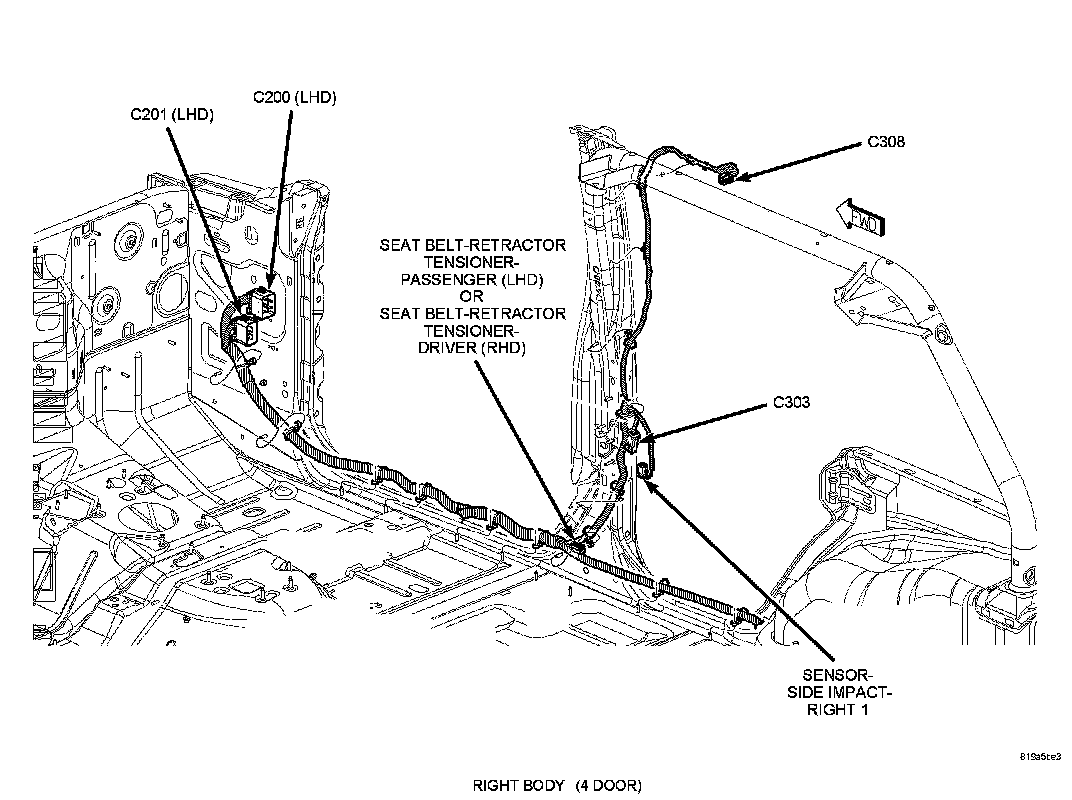

Component Location - 24
