Installation







INSTALLATION

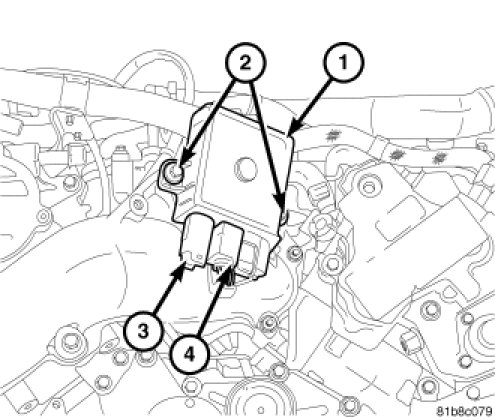

1. Install the Glow Plug Module.




2. Install the two Glow Plug Module bolts (2).
3. Connect the battery positive harness connector (3) to the Glow Plug Module.
4. Connect the Glow Plug Module wiring harness connector (4).
5. Connect negative battery cable.
