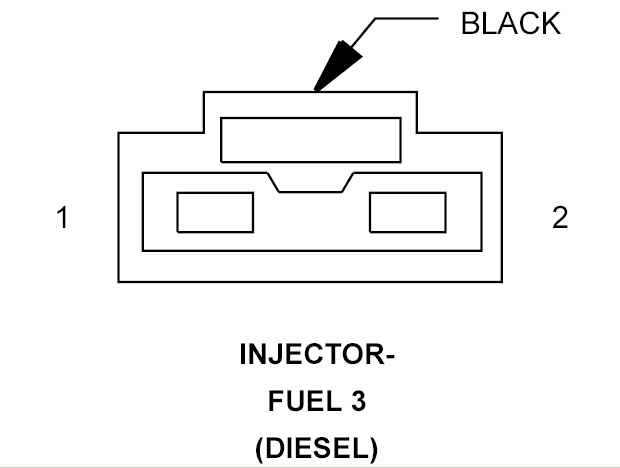

Fuel Injector 3 (Diesel) Connector End View
INJECTOR-FUEL 3 - BLACK 2 WAY (DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K663 16BR/YL |
FUEL INJECTOR HIGH-SIDE COMMON |
| 2 |
K613 16BR/WT |
FUEL INJECTOR 3 LOW-SIDE CONTROL |
