EGR Solenoid

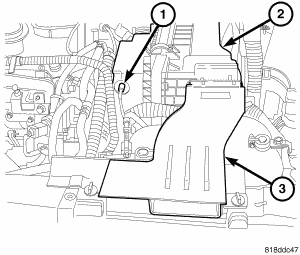

Fig 1: Air Cleaner
GC0056189Courtesy of CHRYSLER LLC
  1. Position and install solenoid valve block onto bracket.
  2. Connect vacuum harness to solenoid valve block.
  3. Connect solenoid valve block electrical connector.
  4. Connect negative battery cable.
  5. Install air cleaner housing. Refer to INSTALLATION - 2.0L. Refer to INSTALLATION - 2.4L.

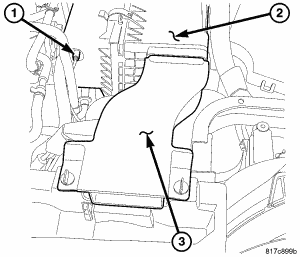

    Fig 2: Air Inlet Duct
    GC0056190Courtesy of CHRYSLER LLC
  6. Install air inlet duct (3).
