Compass Limited, AWD, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System - Electrical Diagnostics
>>
Abs Electrical Diagnostics
>>
DTC Troubleshooting
>>
C1038-Rear Wheel Speed Sensor Circuit Low
>>
Circuit Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Schematic

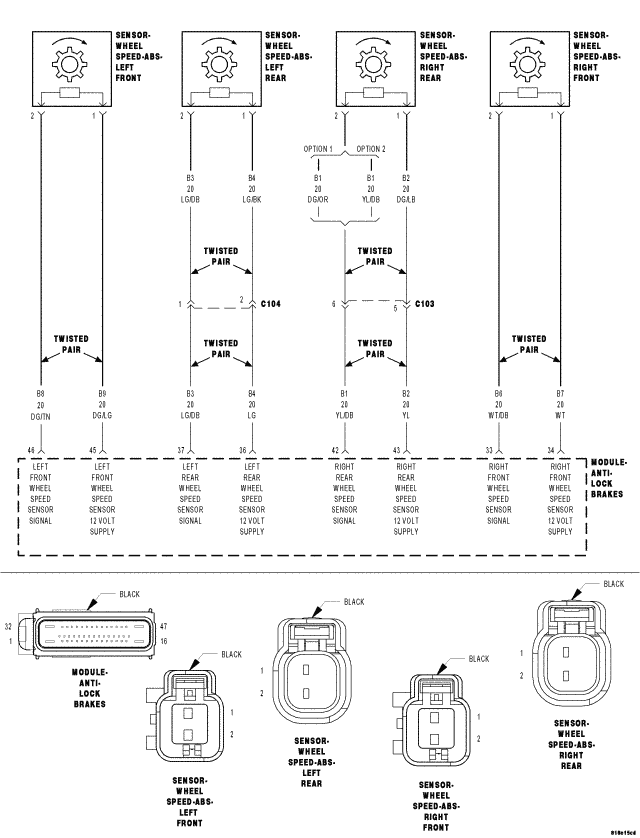

Fig 1: Wheel Speed Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
