Rear Wheel Speed Sensor - Removal

ALL-WHEEL-DRIVE

NOTE: Before proceeding, Brakes - Caution.





1. Remove the cargo floor cover.

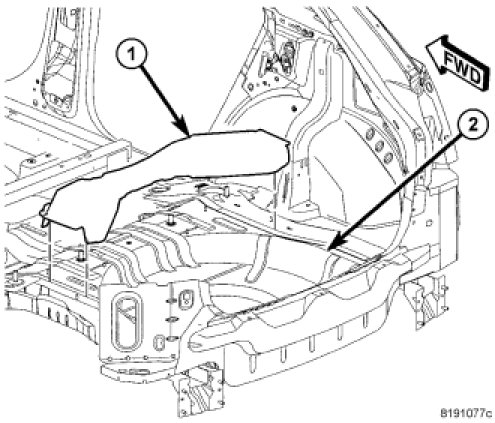

2. Remove the rear floor pan silencer (1).

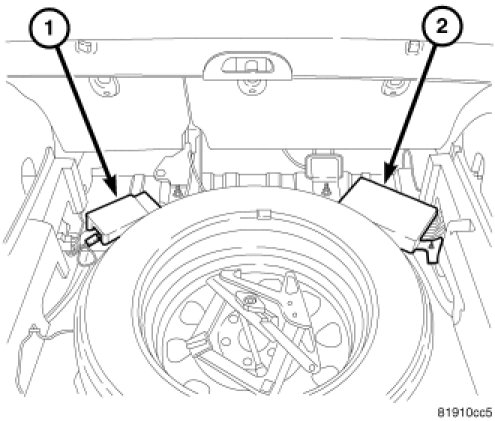

3. If equipped, remove the nuts mounting the satellite receiver (1) or amplifier (2) to rear floor pan. Move the component aside to allow access to the wheel speed sensor wiring connector through the opening in bottom of the quarter trim panel.

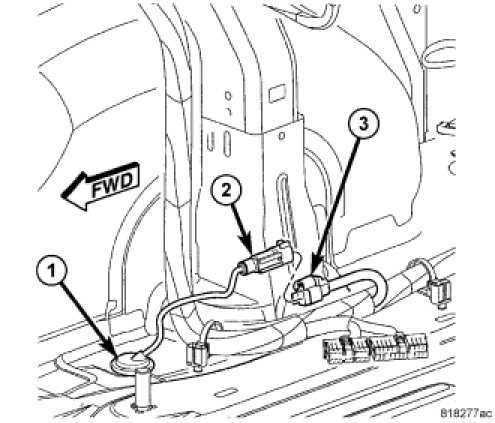

4. Through the opening in the bottom of the quarter trim panel, disconnect the wheel speed sensor cable connector (2) at the body wiring harness connector (3).
5. Raise and support the vehicle. Maintenance.




6. Remove the wheel mounting nuts (3), then the rear tire and wheel assembly (1).




7. Remove the grommet (2) from the hole in the body (1) and pull the wheel speed sensor cable out through the hole.

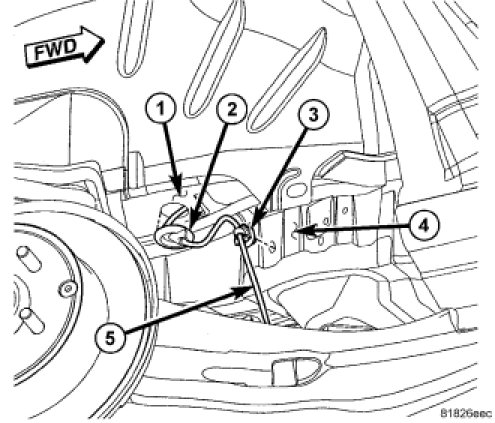

8. Remove the speed sensor cable routing clip (3) from the outside frame rail (4).

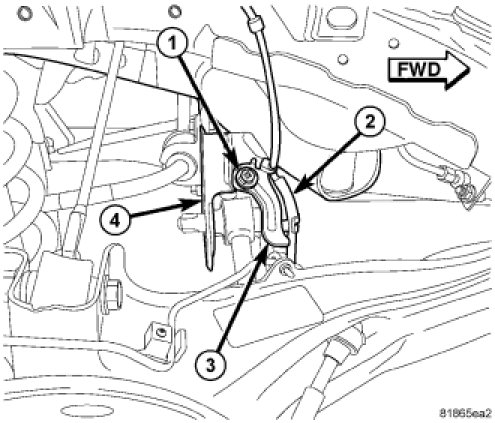

9. Remove the screw (1) fastening the cable routing clamp (3) to the rear suspension crossmember (4).

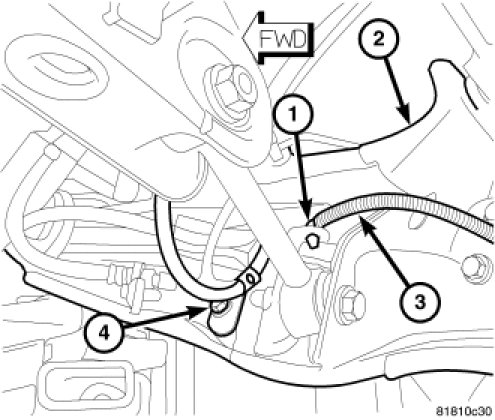

10. Remove the speed sensor cable routing clip (1) from the trailing link (2).
11. Remove the screw (4) fastening the cable routing clamp to the trailing link.

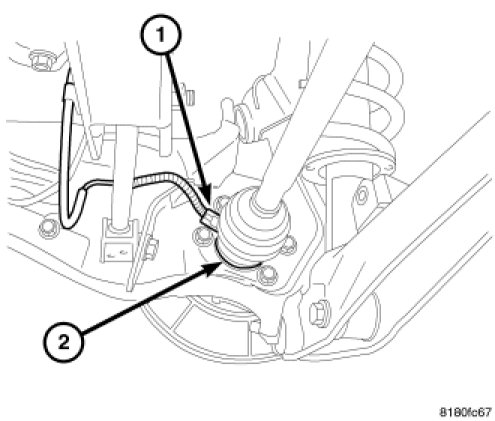

12. Unclip the wheel speed sensor head (1) from the spring-loaded retainer on the rear of the hub and bearing (2). Remove the sensor from the vehicle.
