Front Lamp Unit - Installation

LAMP





1. Position the headlamp unit (1) close enough to the front of the vehicle to reconnect the engine compartment wire harness connectors to the back of the lamp housing.

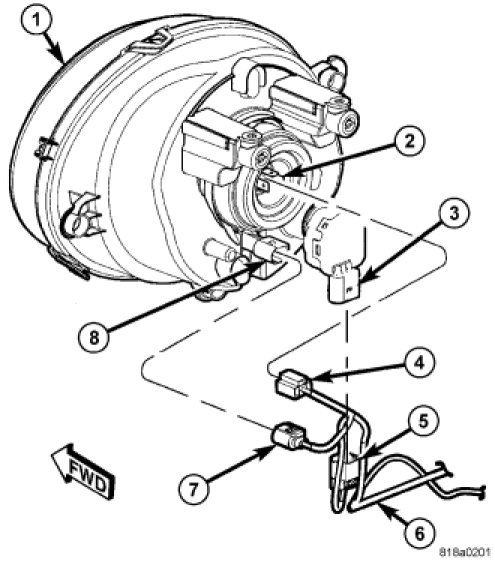

2. On export market vehicles only, reconnect the engine compartment wire harness (6) connector (5) to the headlamp leveling motor connector receptacle (3), the connector (7) to the position lamp connector receptacle (8), and the connector (4) to the headlamp bulb terminals (2).

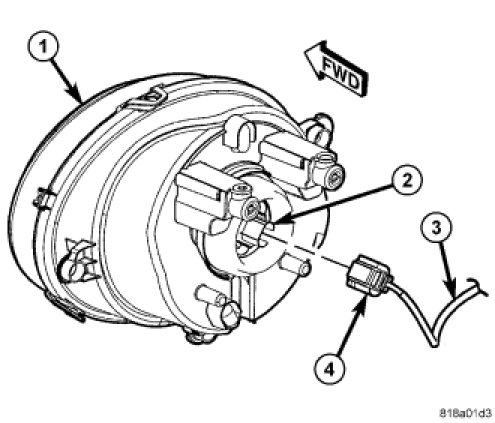

3. On domestic market vehicles only, reconnect the engine compartment wire harness (3) connector (4) to the headlamp bulb connector receptacle (2).

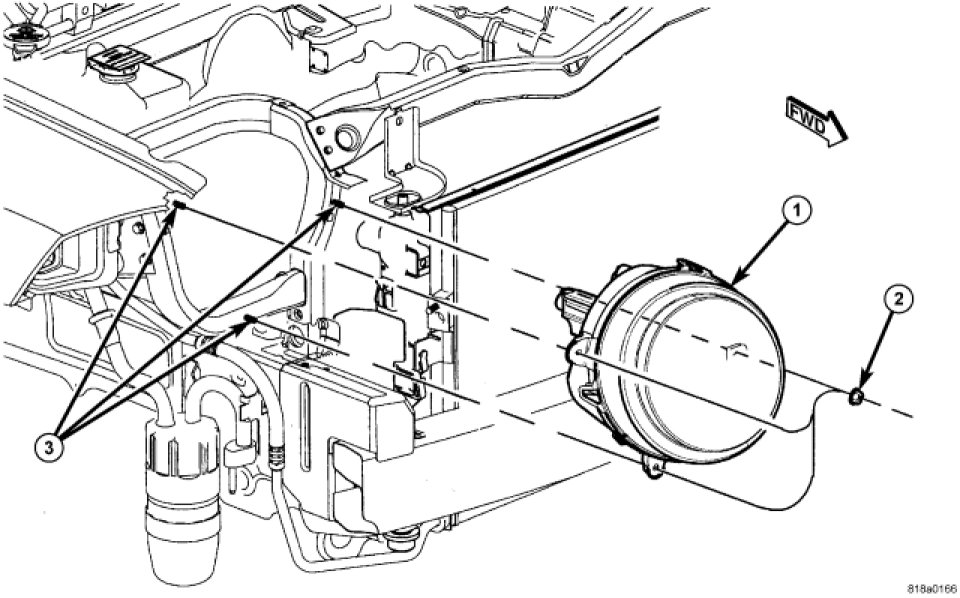

4. Position the headlamp unit (1) mounting brackets onto the three studs (3) on the front fender and front end support structure.
5. Install and tighten the three nuts (2) that secure the lamp mounting brackets to the studs. Tighten the nuts to 3 Nm (25 in. lbs.).
6. Reinstall the fascia onto the front of the vehicle. Front Fascia - Installation.
7. Reconnect the battery negative cable.
8. Confirm proper headlamp alignment. Procedures.
