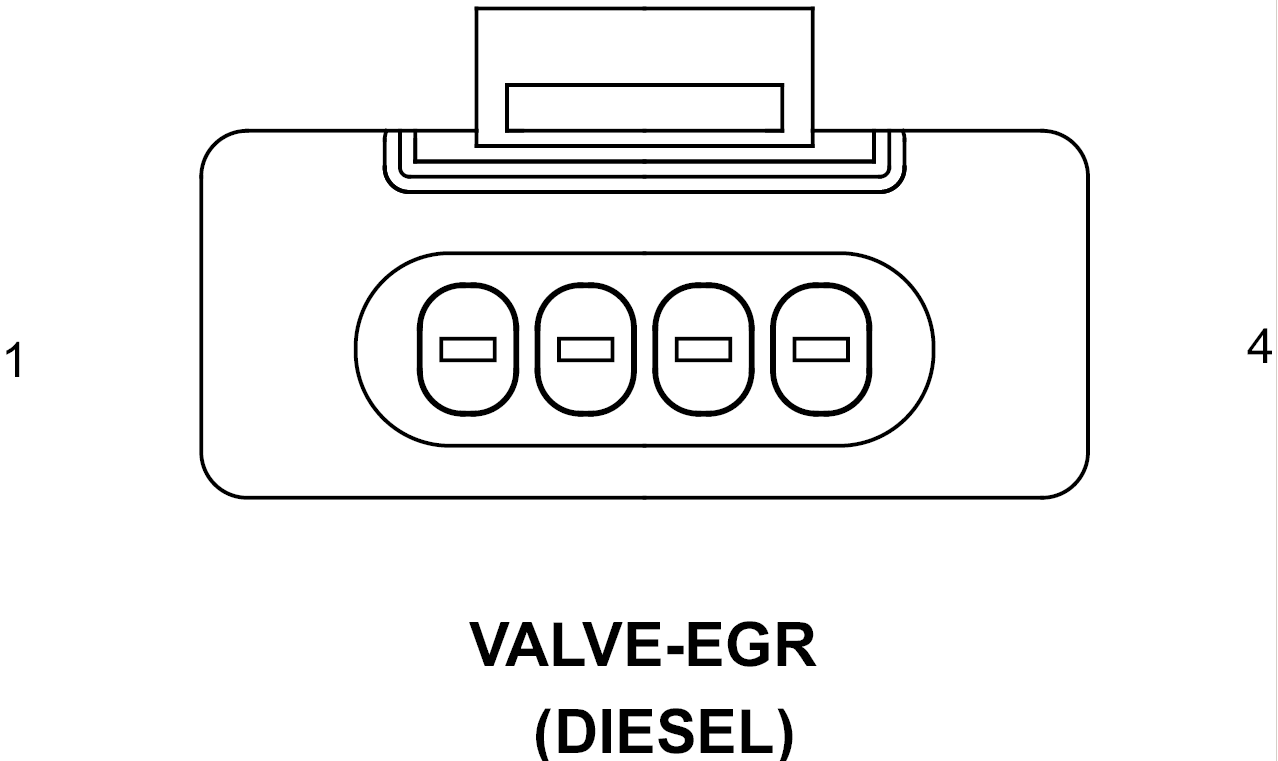

EGR Valve (Diesel) Connector End View
VALVE-EGR - 4-WAY(DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K34 20GY/YL |
EGR SOLENOID CONTROL |
| 2 |
A15 18RD/DG |
FUSED ASD RELAY OUTPUT |
| 3 |
Z42 18BR |
GROUND |
| 4 |
- |
- |
