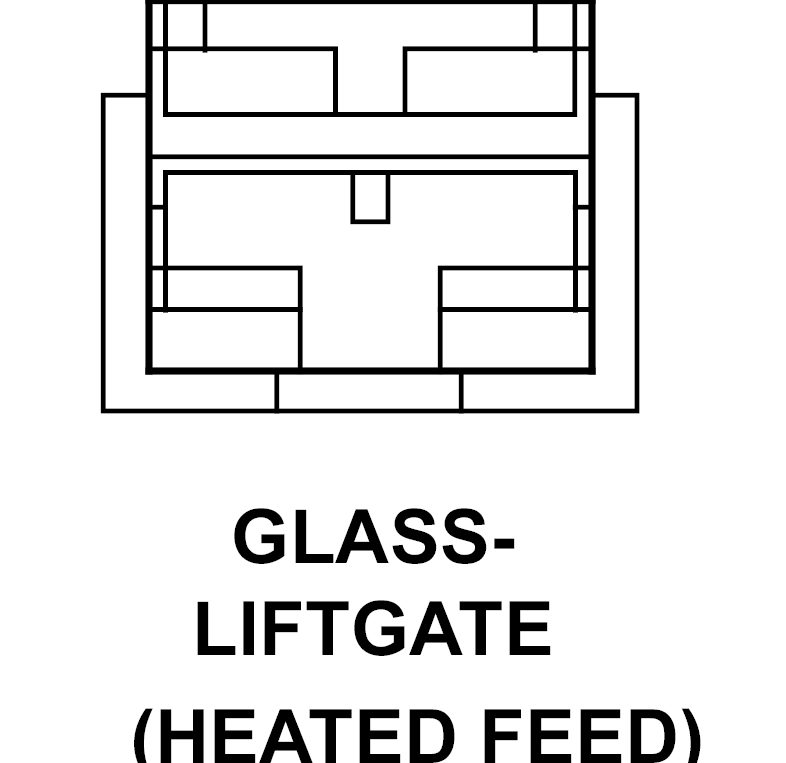

Liftgate Glass (Heated Feed) Connector End View
GLASS-LIFTGATE - 1-WAY(HEATED FEED)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C515 12BK |
REAR WINDOW DEFOGGER RELAY OUTPUT |
