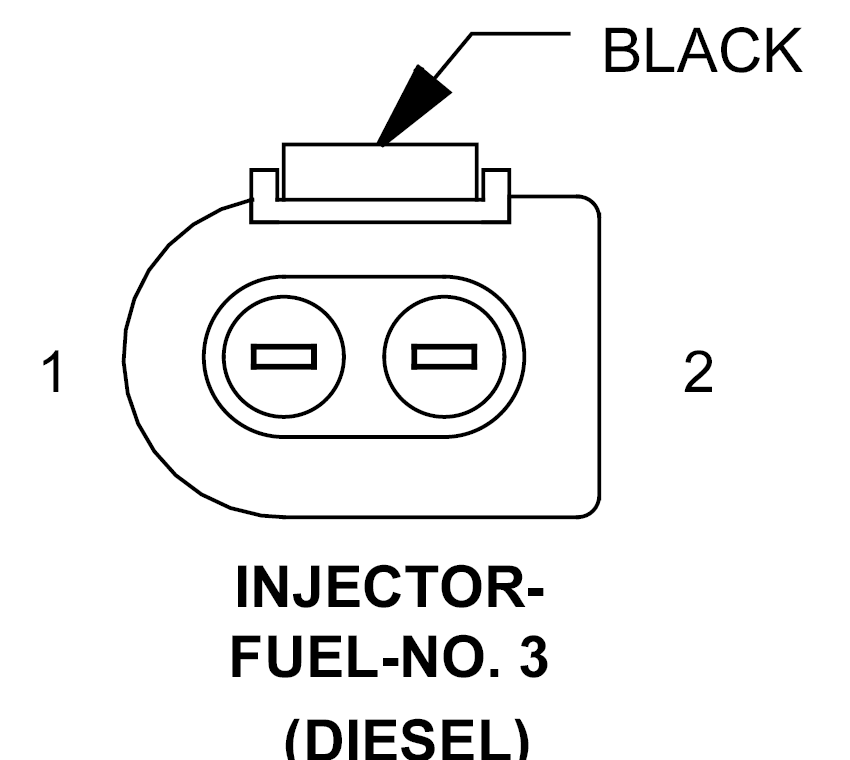

Fuel Injector 3 (Diesel) Connector End View
INJECTOR-FUEL-NO. 3 - 2-WAY(DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K613 16BK/RD |
FUEL INJECTOR NO. 3 LOW-SIDE CONTROL |
| 2 |
K13 16BL/RD |
FUEL INJECTOR NO. 3 HIGH-SIDE CONTROL |
