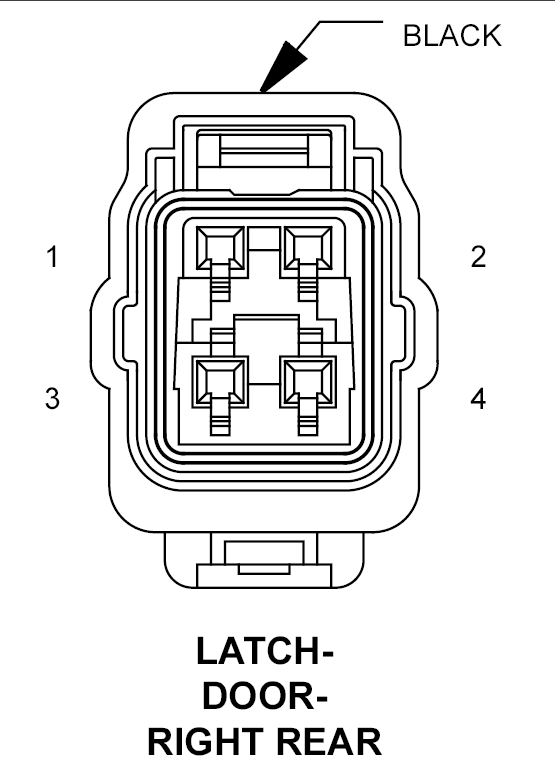

Right Rear Door Latch Connector End View
LATCH-DOOR-RIGHT REAR - BLACK 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G76 20VT/YL |
RIGHT REAR DOOR AJAR SWITCH SENSE |
| 2 |
Z908 20BK |
GROUND |
| 3 |
P792 16LG/TN |
PASSENGER DOORS UNLOCK RELAY OUTPUT |
| 4 |
P778 16LG/LB |
DOOR LOCK RELAY OUTPUT |
