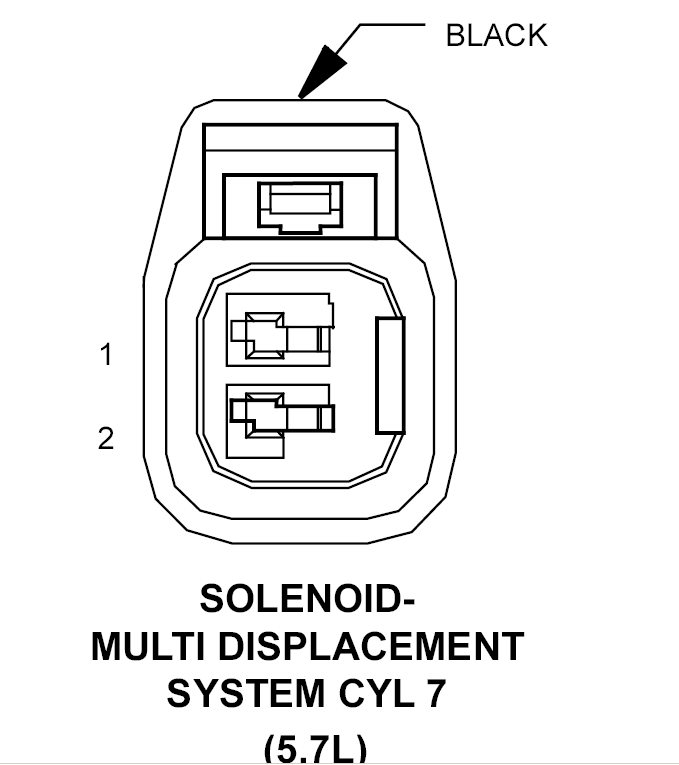

Multi Displacement System Cyl Solenoid 7 (5.7L) Connector End View
SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 7 - BLACK 2-WAY(5.7L)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K454 20BR/OR |
MDS SOL CONTROL NO. 7 |
| 2 |
Z42 20BK/LG |
GROUND |
