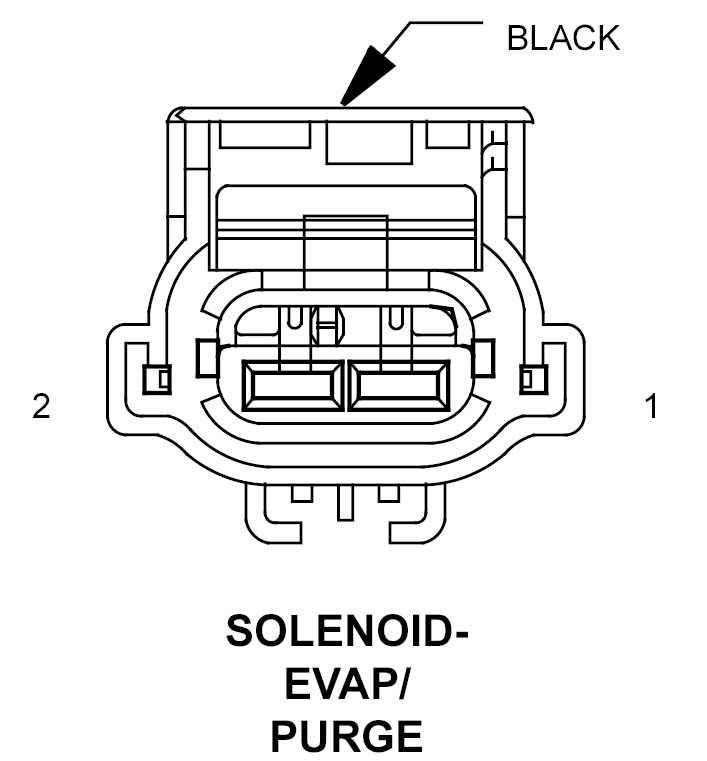

EVAP Purge Solenoid Connector End View
SOLENOID-EVAP/PURGE - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K70 20DB/BR |
EVAP PURGE SOL CONTROL |
| 2 |
K52 20DB/YL |
EVAP PURGE SOL SIGNAL |
