Oil Pan, Engine

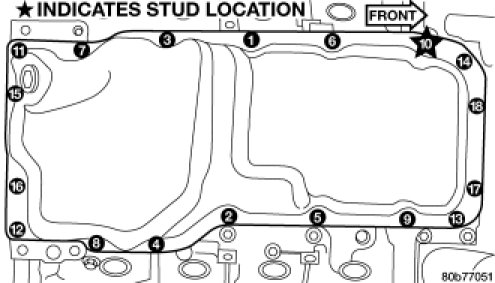

OIL PAN TORQUE AND SEQUENCE






Position the oil pan and install the mounting bolts. Tighten the mounting bolts to 15 Nm (11 ft. lbs.) in the sequence shown.
