Installation

4.7L V-8

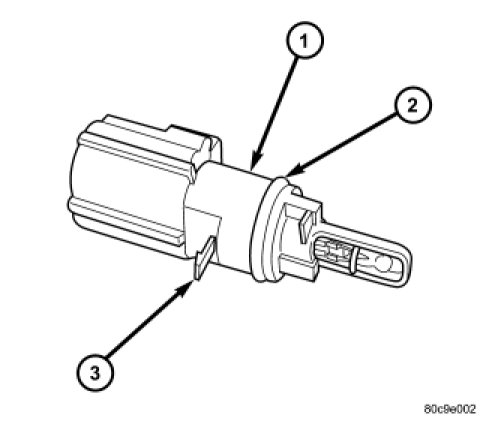

1. Check condition of sensor o-ring (2).
2. Clean sensor mounting hole.
3. Position sensor (1) into base and rotate clockwise until past release tab (3).

4. Install electrical connector (2).
